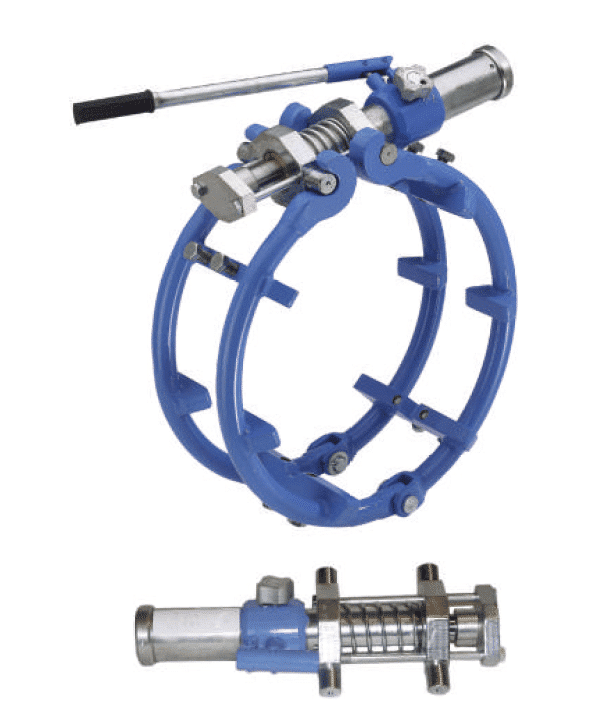

Hydraulic Cage Clamp 36″
HYDRAULIC CAGE CLAMPS Range: 12-80”
Up to 120” external NO-TACK type line-up clamps, lines up pipe for weld to enable the maximum weld to be made without moving the clamp, hand toggle or powerful hydraulic for accurate alignment.
• Hydraulic jack capacity 10-12 ton.
• Specials upon request
Cage Clamps are the cost effective method to quickly align a single size of pipe. There are three versions available; manual, ratchet and hydraulic. These are available in two styles, either “Tack” or “No Tack”. The tack type has straight cross bars and is removed from the pipe before final welding. The more popular no tack model has arched cross bars to permit a 90% circumferential weld without removing the clamp.
Full details can be found in “Documents” section
