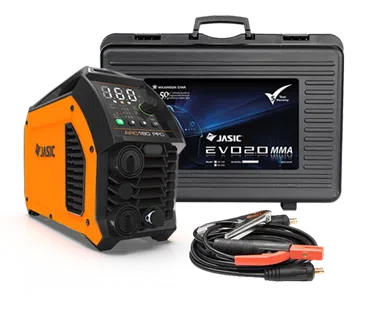

Jasic EVO Arc 160 PFC MMA/TIG Welder - 160A (115V/230V Dual Voltage) - Includes Case & Leads

EA-160 Jasic In Stock Fast Dispatch
Price per unit
£365.00 ex VAT
£438.00 inc VAT
Save %
Was £ ex VAT
PRICE PROMISE
Price Match Available on this Jasic product. Found it cheaper at a UK retailer? Send us the link and we will match the total price, delivery included.
  • Dual voltage MMA/TIG inverter welder, 160A maximum at AC 230V
  • MMA current range 20-160A (AC 230V); TIG current range 10-160A (AC 230V)
  • Includes protective carry case and 3 metre MMA leads
  • Dimensions 413 x 150 x 311mm; weighs 7.2kg
  • 25% rated duty cycle at 40°C for both MMA and TIG processes
or
Secure Payment Methods:

The Jasic EVO Arc 160 PFC Inverter is a state-of-the-art arc welder designed to cater to the diverse needs of both professional welders and DIY enthusiasts. With its robust construction and user-centric design, this welder promises not only durability but also optimal user comfort.

The Jasic EVO Arc 160 PFC Inverter is a versatile and reliable welding solution packed with advanced features. Whether you’re working on a professional project or a personal DIY task, this welder ensures consistent, high-quality results every time. Its combination of innovative technology and user-friendly design makes it a valuable addition to any welder’s toolkit.

Key Features

  • Ergonomic Design: Built to endure tough working conditions, its ergonomic design ensures user comfort during prolonged welding tasks.
  • ClearVision Technology: A standout feature, the ClearVision technology boasts a high-definition LED screen positioned at an angle that offers improved visibility, making it easier to monitor and adjust welding parameters.
  • Intelligent Synergic Control: This feature automatically tweaks the welding parameters based on the selected process and material thickness, ensuring optimal weld quality without the need for manual adjustments.
  • Smart Lift TIG: This advanced feature prevents common TIG welding issues such as tungsten tip sticking and contamination. It ensures a clean and precise TIG welding experience by recognizing accidental contact between the tungsten tip and the workpiece.
  • Convenience and Protection: The welder comes with a protective case for secure storage and transportation. Additionally, MMA leads are included for easy connection to the power source.

Standard Accessories

  • Protective Carry Case
  • MMA 3 Mtr Leads

Optional Accessories

  • Dedicated Wireless/Wired Remote Control
  • Mini Remote
Input voltage AC95-265V, 50/60 Hz
No load voltage 78V
Efficiency 86%
Power factor 0.99
Idle state power MMA: 38.2W TIG: 7W
Protection class IP23S
Insulation class H
Dimensions LxWxH 413 x 150 x 311mm
Weight 7.2kg
AC 115V AC 230V
Rated input current 28.7A Rated input current 22.6A
Ieff 14.4A Ieff 11.3A
Rated input power 3.3kVA Rated input power 5kVA
Current range 20-110A Current range 20-160A
Rated duty cycle @ 40°C 25% Rated duty cycle @ 40°C 25%
Recommended generator size 5kVA Recommended generator size 7.5kVA
AC 115V AC 230V
Rated input current 23.3A Rated input current 14.0A
Ieff 11.7A Ieff 7A
Rated input power 2.2kVA Rated input power 3.2kVA
Current range 10-120A Current range 10-160A
Rated duty cycle @ 40°C 25% Rated duty cycle @ 40°C 25%
Cooling Air Cooled
Pulse Welding Non-Pulse
Power Source Dual / Universal Voltage (110V/230V)
Applications General Fabrication (160-210A)
Duty Rating Light Duty (<30%)
Portability Ultra-Portable
Enclosure Rating IP23 / IP23S or higher
Ignition Type Lift
MMA Duty Cycle 25% at 160A
TIG Duty Cycle 25% at 160A
Brand Jasic
Input Voltage 115V, 230V
Amperage 160A
MIG Duty Cycle 25% Duty Cycle
Welding Process MMA, TIG

ARC-160-PFC-.pdf

Download PDF

User Manual

Download PDF
