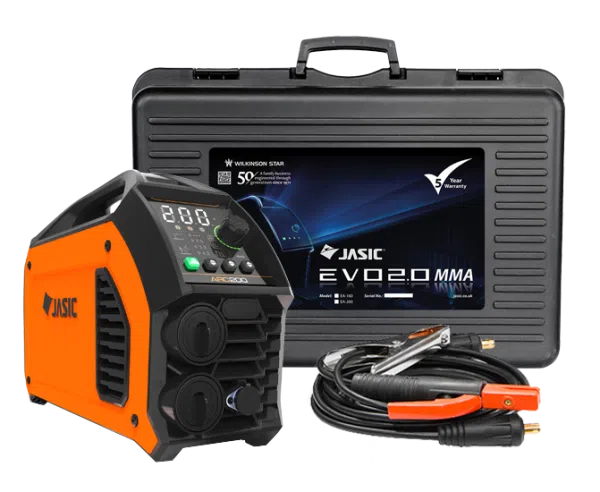

Jasic EVO Arc 200 PFC Inverter c/w Case & Leads

EA-200 Jasic In Stock Fast Dispatch
Price per unit
£389.00 ex VAT
£466.80 inc VAT
Save %
Was £ ex VAT
PRICE PROMISE
Price Match Available on this Jasic product. Found it cheaper at a UK retailer? Send us the link and we will match the total price, delivery included.
  • Inverter arc welder supporting MMA and TIG welding processes
  • MMA current range 20-200A, TIG current range 10-200A at AC 230V
  • Input voltage AC 95-265V, 50/60 Hz with 78V no load voltage
  • Includes protective carry case and MMA 3 metre leads
  • Dimensions 413 x 150 x 311mm, weight 7.2kg
or
Secure Payment Methods:

The Jasic EVO Arc 200 PFC Inverter is a state-of-the-art arc welder designed to cater to the diverse needs of both professional welders and DIY enthusiasts. With its robust construction and user-centric design, this welder promises not only durability but also optimal user comfort.

The Jasic EVO Arc 200 PFC Inverter is a versatile and reliable welding solution packed with advanced features. Whether you’re working on a professional project or a personal DIY task, this welder ensures consistent, high-quality results every time. Its combination of innovative technology and user-friendly design makes it a valuable addition to any welder’s toolkit.

Key Features

  • Ergonomic Design: Built to endure tough working conditions, its ergonomic design ensures user comfort during prolonged welding tasks.
  • ClearVision Technology: A standout feature, the ClearVision technology boasts a high-definition LED screen positioned at an angle that offers improved visibility, making it easier to monitor and adjust welding parameters.
  • Intelligent Synergic Control: This feature automatically tweaks the welding parameters based on the selected process and material thickness, ensuring optimal weld quality without the need for manual adjustments.
  • Smart Lift TIG: This advanced feature prevents common TIG welding issues such as tungsten tip sticking and contamination. It ensures a clean and precise TIG welding experience by recognizing accidental contact between the tungsten tip and the workpiece.
  • Convenience and Protection: The welder comes with a protective case for secure storage and transportation. Additionally, MMA leads are included for easy connection to the power source.

Standard Accessories

  • Protective Carry Case
  • MMA 3 Mtr Leads

Optional Accessories

  • Dedicated Wireless/Wired Remote Control
  • Mini Remote
Input voltage AC95-265V, 50/60 Hz
AC 115V AC 230V
No load voltage 78V
MMA Rated input current 31.2A 29.7A
Ieff 15.6A 14.9A
Rated input power 3.3kVA 5kVA
Current range 20-120A 20-200A
Rated duty cycle @ 40C 25%
TIG Rated input current 27.2A 19.6A
Ieff 13.6A 9.8A
Rated input power 3.1kVA 4.5kVA
Current range 10-160A 10-200A
Rated duty cycle @ 40C 25%
Efficiency 85%
Power factor 0.99
Idle state power MMA: 46.8W TIG: 7W
Protection class IP23S
Insulation class H
Dimensions LxWxH 413 x 150 x 311mm
Weight 7.2kg
Recommended generator size 5.5kVA 10kVA
Cooling Air Cooled
Pulse Welding Non-Pulse
Power Source Dual / Universal Voltage (110V/230V)
Applications General Fabrication (160-210A)
Duty Rating Light Duty (<30%)
Portability Ultra-Portable
Enclosure Rating IP23 / IP23S or higher
MMA Duty Cycle 25% at 200A
TIG Duty Cycle 25% at 200A
Brand Jasic
Input Voltage 115V, 230V
Amperage 200A
MIG Duty Cycle 25% Duty Cycle
Welding Process MMA, TIG

Datasheet

Download PDF

User Manual

Download PDF
