Description

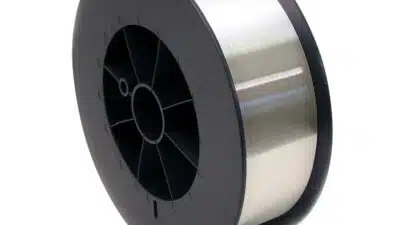

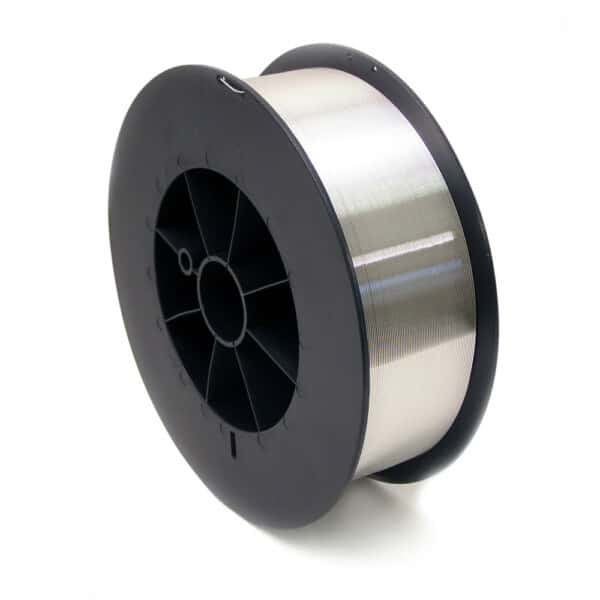

Sifmig 1050 Aluminium MIG Wire 6.5kg
Sifmig 1050 Aluminium MIG Wire is a pure aluminium wire with a minimum purity of 99.5%. This shaved wire is designed to produce a ductile weld that matches the strength of the base metal. It is a TIG/MIG filler wire specifically for pure aluminium. Given its properties, it is recommended for alloys that are intended to be anodised.
Key Features:
- Composed of pure aluminium with a minimum purity of 99.5%.
- Produces a ductile weld that is equal in strength to the base metal.
- Suitable for alloys that are to be anodised.
- Can be used with Oxy-Acetylene and an appropriate flux as a brazing alloy.
Common Applications:
Sifmig 1050 Aluminium MIG Wire is primarily used for:
- Joining pure aluminium through the TIG process, especially for grades like 1050, 1080, 1200, and LM0.
- Brazing applications when paired with the appropriate flux.
Material to be Welded
Joining of Pure Aluminium by Tig process: 1050, 1080, 1200, LM0
Can be used with Oxy – Acetylene and an appropriate flux as a Brazing alloy.
Specifications
| Product Type | Mig Wire – Aluminium |
| Part Number | WO141065 |
| Weight | 6.5 KG |
| Diameter | 1.0/1.2/1.6mm |
| Melting Point DegC | 650 |
| U.T.S. N/mm2 | 90 |
| Shielding Gas | Pure Argon or Ar/He |
Welding Positions
Typical Mechanical Properties
| Ultimate Tensile Strength | 85 |
| Yield Strength | 35 |
| Elongation | 40 |
Typical Weld Metal Composition
| Al | 0.2 |
| Mg | 0.2 |
| Si | 0.4 |
| Mn | 0.2 |
| Fe | 0.16 |
Technical Data
| EN ISO 18273 | S Al 1070 (Al99.7) |
| AWS A5.10 | ER1100 |
| BS 2901 | 1050A |
| BS 1845 | NG3 |
