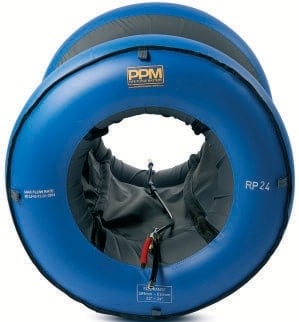

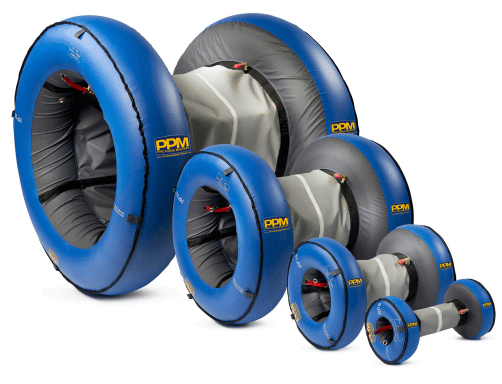

Rapid Purge Inflatable Pipe Purge System, Sizes 8″ – 80″ (190 – 2044mm)
Used for stainless, duplex, chrome steels, titanium, nickel and other alloy materials, the PPM Rapid Purge system enables high speed welding of larger diameter pipe joints that need to be purged.
The system is designed to enable the user to produce high quality, reliable and repeatable welding of stainless steel tube and pipe joints free from oxidation and discolouration.
A 36″ diameter pipe will purge to below 0.1% oxygen in less than 10 minutes and all smaller pipes correspondingly faster. Due to the quality of the materials used, the Rapid Purge system can be used over and over again, reducing manufacturing costs.
The Rapid Purge system has been developed specifically to enable high speed purging for any pipe welding application.
Features and Advantages
- Dramatic savings of time, gas and money can be made by using these systems.
- Typical purge times of less than 10 minutes.
- The unique thru-bore design of the central sleeve minimizes the area to be purged, dramatically reducing the gas consumption.
- Friction free coatings allow easy movement through pipes from one joint to another, even around bends and elbows.
- Ready to use, connects to a dedicated and regulated gas supply. Choose any flow rate up to 80 l/min through the twin pre-set purge valve.
- A central luminous strip allows fast and accurate alignment of the system to the center-point of the weld area.
- The inflatable dams and umbilical hose are covered with a heat resistant material and insulated accordingly for use at temperatures up to 250C.
How it works
The Rapid Purge system for pipe and vessel purging comprises a tandem inflatable dam system connected by an umbilical hose and collar to reduce the volume being purged. A gas exhaust valve is installed between the primary and secondary dam, along with an auxiliary argon purge line. This Rapid Purge system valve is pre-set, making it ready to use straight out of the box. Each Rapid Purge system is covered with heat protective material, so that the higher temperatures closer to the weld do not damage the system. The robust design of the system allows for many years of repeatable trouble free use.
| Part No. | Description | Nominal Pipe Size | Internal Diameter Range (I/D) | Weight (lbs / kg) |
|---|---|---|---|---|
| RP08 | 8″ Rapid Purge system | 8″ / 200 mm | 7.09 – 8.45″ / 180 – 215 mm | 3 lbs / 1.40 kg |
| RP10 | 10″ Rapid Purge system | 10″ / 250 mm | 9.26 – 10.61″ / 235 – 270 mm | 3 lbs / 1.70 kg |
| RP12 | 12″ Rapid Purge system | 12″ / 300 mm | 11.03 – 12.39″ / 280 – 315 mm | 4 lbs / 2.10 kg |
| RP14 | 14″ Rapid Purge system | 14″ / 350 mm | 12.41 – 13.76″ / 315 – 350 mm | 5 lbs / 2.50 kg |
| RP16 | 16″ Rapid Purge system | 16″ / 400 mm | 14.38 – 15.73″ / 365 – 400 mm | 5 lbs / 2.70 kg |
| RP18 | 18″ Rapid Purge system | 18″ / 450 mm | 16.34 – 17.70″ / 415 – 450 mm | 6 lbs / 3.00 kg |
| RP20 | 20″ Rapid Purge system | 20″ / 500 mm | 18.31 – 19.67″ / 465 – 500 mm | 7 lbs / 3.40 kg |
| RP22 | 22″ Rapid Purge system | 22″ / 550 mm | 19.69 – 21.05″ / 500 – 535 mm | 7 lbs / 3.60 kg |
| RP24 | 24″ Rapid Purge system | 24″ / 600 mm | 22.45 – 23.80″ / 570 – 605 mm | 8 lbs / 3.80 kg |
| RP26 | 26″ Rapid Purge system | 26″ / 650 mm | 24.41 – 25.77″ / 620 – 655 mm | 9 lbs / 4.50 kg |
| RP28 | 28″ Rapid Purge system | 28″ / 700 mm | 26.38 – 27.74″ / 670 – 705 mm | 12 lbs / 5.50 kg |
| RP30 | 30″ Rapid Purge system | 30″ / 750 mm | 28.35 – 29.71″ / 720 – 755 mm | 13 lbs / 6.00 kg |
| RP32 | 32″ Rapid Purge system | 32″ / 800 mm | 30.32 – 31.68″ / 770 – 805 mm | 18 lbs / 8.00 kg |
| RP34 | 34″ Rapid Purge system | 34″ / 850 mm | 32.48 – 33.86″ / 825 – 860 mm | 19 lbs / 8.50 kg |
| RP36 | 36″ Rapid Purge system | 36″ / 900 mm | 34.45 – 35.81″ / 875 – 910 mm | 20 lbs / 9.10 kg |
| RP38 | 38″ Rapid Purge system | 38″ / 950 mm | 36.61 – 37.99″ / 930 – 965 mm | 21 lbs / 9.50 kg |
| RP40 | 40″ Rapid Purge system | 40″ / 1,000 mm | 38.98 – 39.95″ / 990 – 1015 mm | 22 lbs / 9.90 kg |
| RP42 | 42″ Rapid Purge system | 42″ / 1,050 mm | 40.56 – 41.91″ / 1030 – 1065 mm | 29 lbs / 13.20 kg |
| RP44 | 44″ Rapid Purge system | 44″ / 1,100 mm | 42.52 – 43.90″ / 1080 – 1115 mm | 30 lbs / 13.70 kg |
| RP46 | 46″ Rapid Purge system | 46″ / 1,150 mm | 44.29 – 45.67″ / 1125 – 1160 mm | 32 lbs / 14.50 kg |
| RP48 | 48″ Rapid Purge system | 48″ / 1,200 mm | 46.46 – 47.82″ / 1180 – 1215 mm | 33 lbs / 15.00 kg |
| RP50 | 50″ Rapid Purge system | 50″ / 1,250 mm | 48.42 – 49.80″ / 1230 – 1265 mm | 35 lbs / 16.00 kg |
| RP52 | 52″ Rapid Purge system | 52″ / 1,300 mm | 50.59 – 51.97″ / 1285 – 1320 mm | 37 lbs / 17.00 kg |
| RP54 | 54″ Rapid Purge system | 54″ / 1,350 mm | 52.36 – 53.74″ / 1330 – 1365 mm | 39 lbs / 18.00 kg |
| RP60 | 60″ Rapid Purge system | 60″ / 1,500 mm | 58.46 – 59.84″ / 1485 – 1520 mm | 44 lbs / 20.00 kg |
| RP66 | 66″ Rapid Purge system | 66″ / 1,650 mm | 64.38 – 65.73″ / 1635 – 1670 mm | 55 lbs / 25.00 kg |
| RP72 | 72″ Rapid Purge system | 72″ / 1,800 mm | 70.27 – 71.65″ / 1785 – 1820 mm | 62 lbs / 28.00 kg |
| RP80 | 80″ Rapid Purge system | 80″ / 2,000 mm | 78.35 – 79.72″ / 1990 – 2025 mm | 66 lbs / 30.00 kg |
