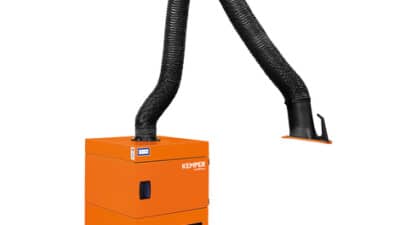

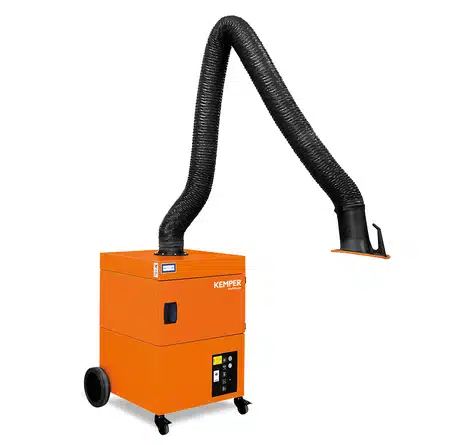

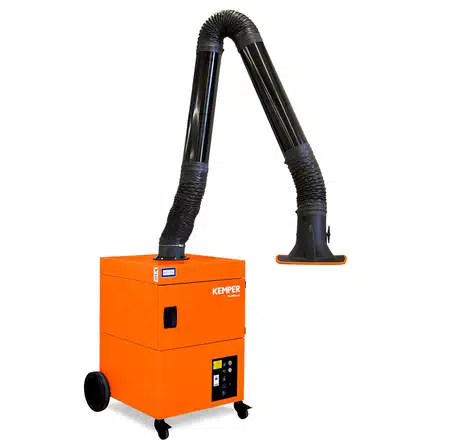

KEMPER ProfiMaster Welding Smoke Filter Unit (Single Arm)

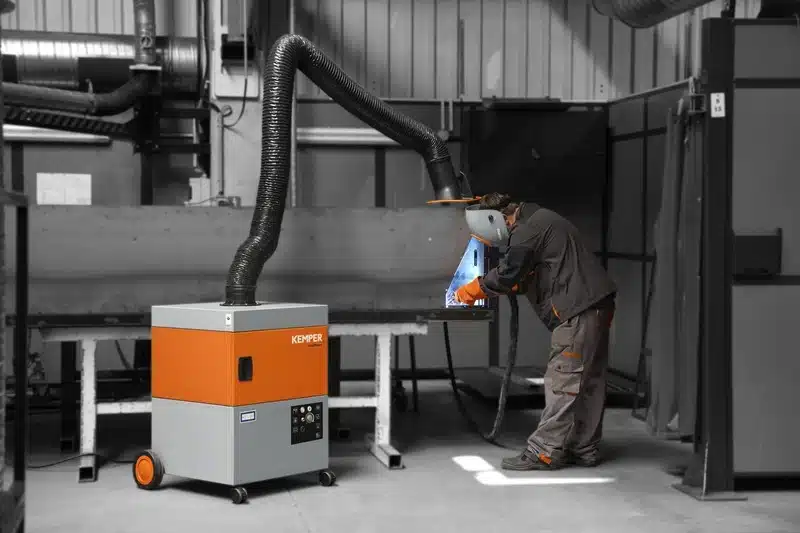

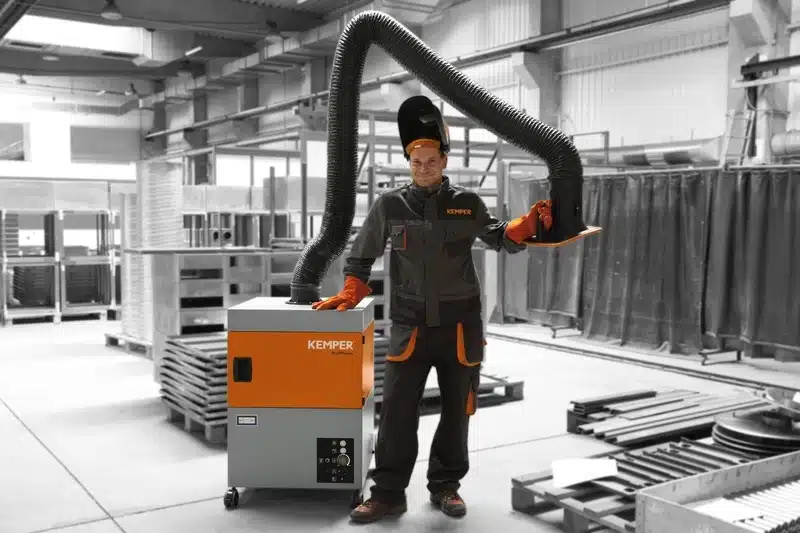

The ProfiMaster is a robust filter unit for frequent use to control welding smoke and fumes. The high capacity disposable filter can be changed easily. The rotating and swivelling exhaust hood enables use in a 360-degree radius and ensures minimal adjustments when welding.
Applications
- Suitable for all materials, including high-alloy steel
- Low to medium levels of smoke and dust
- Occasional to frequent use
Benefits
- Safe operation by rotation field control
- Maintenance door allows easy filter change
- Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
- Increased safety due to filter monitoring
Filter Data
| Filter Data | |
|---|---|
| Filter stages | 2 |
| Filter method | Storage Filter |
| Filter surface | 17 m² |
| Type of filter | Filter cassette |
| Filter material | Non-woven fibre |
| Filter efficiency | > 99.5% |
| Filter class | E12 |
| Additional filters | Pre-filter |
Specification
| Specification | |
|---|---|
| Dimensions (w x d x h) | 31 x 29 x 37 inches |
| Weight (w/o Arm) | 234 lbs. |
| Extraction Arm Diameter | 6 inches |
| Motor Power | 1.1 kW |
| Power Supply | 110/230/400 V |
| Rated Current | 2.3 A |
| Noise Level | ca. 70 dB(A) |
| Extraction Capacity | 1,100 m³/h |
| Maximum Vacuum | 2,100 Pa |
| IFA-W3 Certification | Under Examination |
