0009439 multi function portable spotter 230v

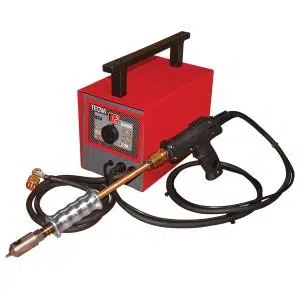

Multi Function Portable Welding Spotter – 230V

3460N  |  Tecna  |  In Stock

£1,184.38 ex VAT £1,421.26 inc VAT

  • Extremely versatile equipment for car body shop repairs
  • Single-spot weld rivets, screws, self-threading rivets, washers and pins
  • Ability to perform shrinking for better panel straightening
  • 3-point star on percussion extractor enables quick straightening of panels
  • Improved versatility with various accessories for sheet straightening
  • Mains cable length of 4m for greater flexibility
    • Share this product

    Description

    Multi Function Portable Welding Spotter – 230V (Shown with Optional Trolley)

    Features:

    • Extremely versatile, it is the ideal equipment for repairs in car body shops
    • Single-spot weld rivets, screws, self-threading rivets, washers and pins
    • it is possible to perform shrinking
    • Quick straightening of panels can be carried out due to the 3 point star on the percussion extractor
    • Improved versatility to allow the use of different accessories for sheet straightening
    • Mains cable: 4m

    Technical Data

    Supply voltage *400 V
    Mains frequency *50/60 Hz
    Mains protection (delayed) 16 A
    Nominal power 50% ED 5 kVA
    Maximum welding power 20 kVA
    Maximum secondary current 4,5 kA
    Thermal current 100% 0,63 kA
    No load secondary voltage 5,6 V
    Weld time 1 /99 cycles
