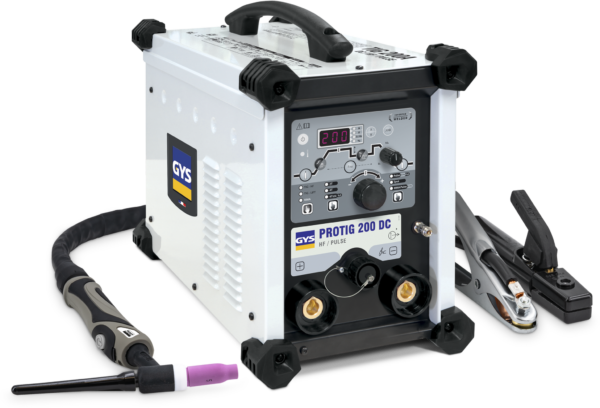

TIG Welder GYS PROTIG 200 DC 200A Single Phase Pulse with TIG26B 4m Torch

The PROTIG 200 DC is a single-phase DC TIG welding unit delivering up to 200 A. It features an advanced secondary control system for excellent arc stability and consistent current output across all welding positions. The unit supports TIG, pulsed TIG, MMA and spot welding modes, making it suitable for ferrous materials, stainless steel, copper and their alloys.

Features

• Secondary control system ensures arc stability and constant current in any welding position
• Pulsed DC TIG controls weld pool temperature and reduces deformation for thin metal sheets from 0.3 mm thick
• Two ignition systems: contactless HF ignition and Arc-Lift ignition for electro-sensitive environments
• Three trigger controls: 2T, 4T and 4T LOG
• Automatic torch detection compatible with grip-handle and double-button torches
• Spot welding mode for fast and precise spot-welding before joining thin sheets
• MMA welding with basic and rutile electrodes up to 5 mm diameter
• Pulsed MMA welding for vertical-up welding in pipeline work
• Anti-sticking technology reduces electrode sticking to workpiece
• Hot Start function adjustable for different metals
• Arc Force provides current boost for difficult welding tasks
• Current and voltage display during and after welding (DMOS/QMOS)
• Stores up to 10 programs per welding process
• Advanced ventilation management reduces power consumption, dust extraction and noise
• Reinforced casing with anti-shock pads on all sides
• Protected against overvoltage up to 400 V (PROTEC 400 technology)
