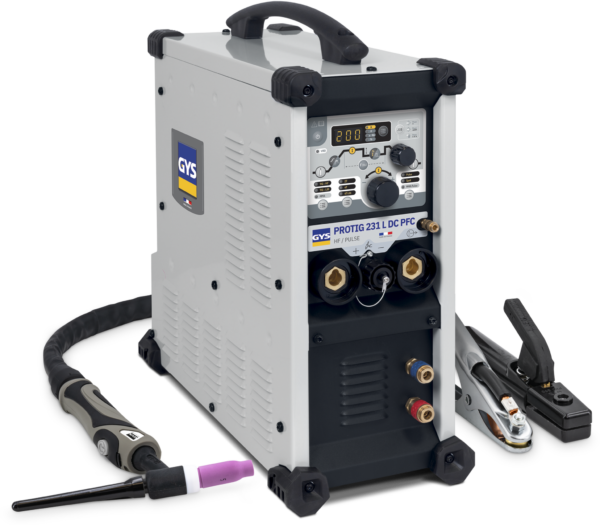

TIG Welder GYS Protig 231L DC PFC Single Phase with Cooling and TIG 20B 4m

The PROTIG 231L DC PFC is a single-phase pulse TIG DC welding power source with integrated cooling unit. PFC technology enables stable operation from 195 V to 265 V, even with extension leads up to 100 m long. It offers both TIG DC and MMA welding processes with pulse capabilities for enhanced control.

Features

• TIG DC with pulse mode up to 2 kHz to control weld pool temperature and limit distortion
• Compatible with workpieces as thin as 0.3 mm when using DC Pulse
• MMA Pulse mode up to 500 Hz for ascending vertical welds on pipes and pipelines
• Two tacking modes: spot (0.1 to 60 seconds) and pulse (0.01 to 60 seconds)
• Two ignition types: contactless HF or contact LIFT for electro-sensitive environments
• Three trigger controls: 2T, 4T and 4T LOG
• Stores up to 50 programs per process for recurring tasks
• Automatic torch detection compatible with lamella, double button, potentiometer and Up and Down torches
• Current and voltage display during and after welding
• VRD can be activated to reduce open-circuit output voltage to less than 35 V
• Intelligent fan management to reduce power consumption, dust ingress and noise
• Protected against overvoltage up to 400 V
• Reinforced body and anti-shock feet for on-site portability
