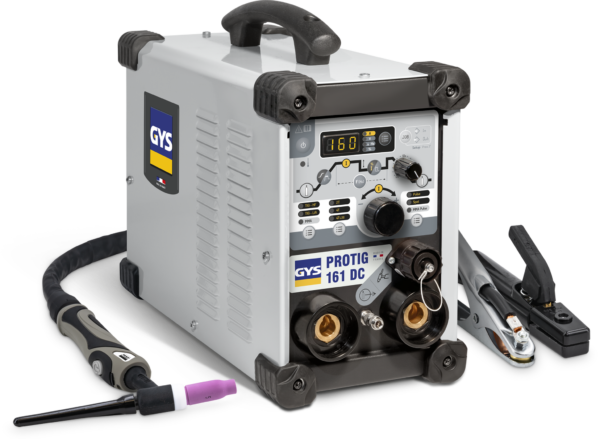

TIG Welder GYS PROTIG 161 DC 160A Single Phase Pulse with TIG17B 4m Torch

The PROTIG 161 DC is an ultra-compact single phase TIG welder rated to 160 A, designed for craftsmen requiring quality welding on mild and stainless steels. It combines TIG DC and MMA capabilities with advanced secondary regulation for arc stability and constant current in all positions.

Features

• Secondary regulation ensures optimum arc stability and constant current in all positions
• TIG DC welding on ferrous materials, stainless steel, copper and alloys
• TIG DC Pulse mode controls molten bath temperature and limits deformation for thin sheet assembly from 0.3 mm
• Spot welding function for fast and precise spot welding before welding thin sheet metal
• Two arc start types: HF (without contact) or LIFT (with contact) for electro-sensitive environments
• Three trigger modes: 2T, 4T and 4T LOG
• Automatic torch detection compatible with latch torches and double button
• MMA welding with basic and rutile electrodes up to 4 mm diameter
• MMA Pulse mode for vertical upright position welding with 3 integrated welding supports
• Antisticking function reduces electrode sticking risk
• Hot Start for easier arcing with adjustable settings
• Arc Force for punctual current increase in difficult welding situations
• Displays current and voltage during and after welding
• Save 10 programs for each process for perfect reproducibility
• Intelligent ventilation management reduces power consumption and noise
• Reinforced body with shockproof rubber pads on corners
• Protected against overvoltage up to 400 V
• Supplied with TIG17B torch (4 m cable), 2 m earth lead (25 mm²) and 2 m work lead (25 mm²)
