Description

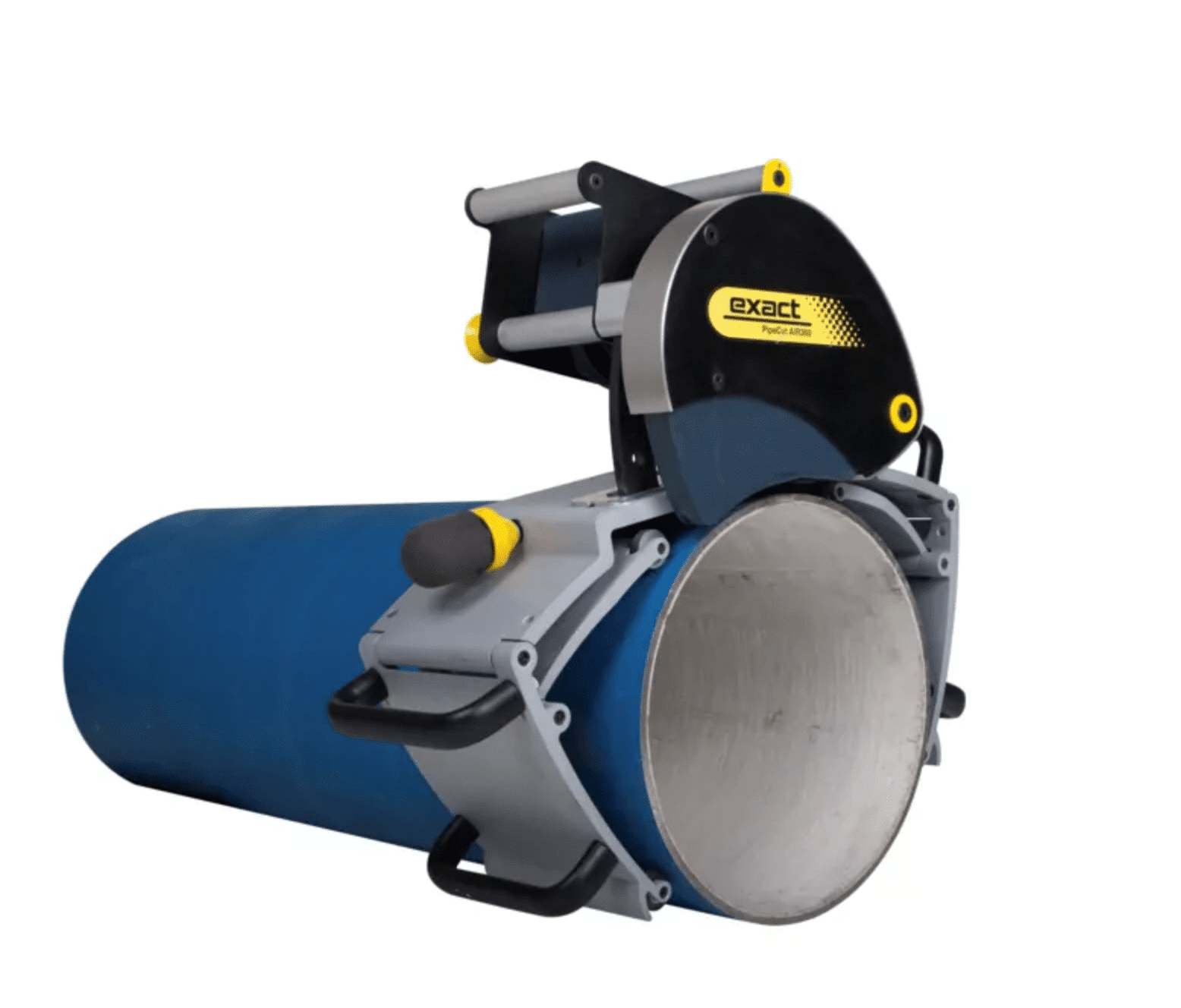

Exact PipeCut Air 360 Air Operated Pneumatic Pipe Cutting Machine
The Exact family offers a completely pneumatic pipe saw designed primarily for cutting assembled pipes in a ditch. However, it can also be used on pipe supports like any other Exact pipe saw.
This pneumatic pipe cutting machine is specifically designed and developed for cutting cement-lined cast iron pipes for repair and maintenance applications in the water utility market sector.
The market demand for introducing this air-driven saw was to cut this type of pipe material in a fixed position underground, with the pipe encapsulated with water.
The PipeCut Air 360 model fulfills these demands and has been enthusiastically received by utility companies since its official launch.
Furthermore, our PipeCut Air 360 provides users with the opportunity to cut plastic pipe material. It can also cut steel pipes, although the saw blade’s lifespan is shorter, requiring sharpening or replacement.
For greater cutting depth, there is an option to purchase 180 mm blades.
- Diamond X180 disc for pneumatic cast iron pipe cutting
- Cermet 180 saw blade for pneumatic stainless steel pipe cutting
- ALU 180 saw blade for pneumatic plastics and aluminium pipe cutting
Includes
- PipeCut AIR 360
- Wrench with push stick
- A small funnel to fit into the oil inlet hole
- 5mm Allen Key for the oil port
Optional extra: Cut and Bevel mechanism
Depth adjusting mechanism, empower your AIR 360 machine unlocking new features:
- Cut and Bevel function in one process A new diamond disc invented for this purpose
- Get more steel pipe cuts Significantly increased blade lifetime for the new 130 mm saw blade we invented for this purpose
Not included in the package
- Air swivel connection
- Saw blade or diamond disc
- Air tool oil VGA 32
Specification | Value |
---|---|
Pipe OD | 110mm – 360mm (4″ – 15″) |
Max. wall thickness | 45mm (1.8″) cast iron, 45mm (1.8″) plastic |
Pipe material | Suitable for ALL materials |
Power | 4.6 HP / 3,4 KW |
Required Air pressure | 6 bar / 90 psi |
Blade diameter | 180mm (7.09″) |
Mounting bore | 62mm (2.44″) |
Weight | 26,7kg (59 lbs) |
