Description

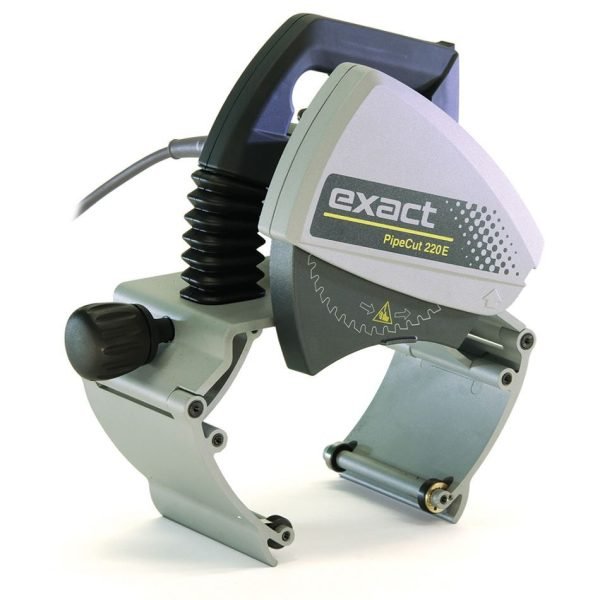

Exact 220E Pipe Cutting System 110V
Power plus a wide cutting capacity with PipeCut 220E It can be used for cutting both metal and plastic pipes; the machine has adjustable motor speed and constant torque.
Because of its robust design it is ideal for use in both the workshop or on site for a multitude of different pipe applications
Includes

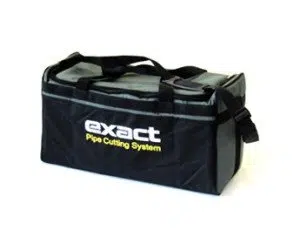

- PipeCut Bag 3
- Exact PipeCut 220E pipe saw
- Pipe Support 280, 4pcs
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 140 blade fitted to the machine
| Pipe material | Acid-resistant steel, Cast iron, Copper, Multi-layered materials, Plastic, Stainless steel, Steel |
|---|---|
| Pipe OD | 15mm – 220mm (0.6”- 8.6”) |
| Max. wall thickness | 8 mm (0.31“) steel, 14 mm (0.55“) plastic |
| Voltage / Power | 230V / 1200W |
| Voltage / Current | 110V, 120V / 9.2A |
| No-Load speed | 1600 – 3500 r/min |
| Blade diameter | 140mm (5.51”) |
| Mounting bore | 62mm (2.44”) |
| Weight | 6,0kg (13 lbs) |
| Electronical unit | Blade speed preselection, automatic fuse, soft start, torque control |
| Speed preselection | 4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials |
| Loading capacity of supports | 314 kg , 692 lb (4 supports) |
