Description

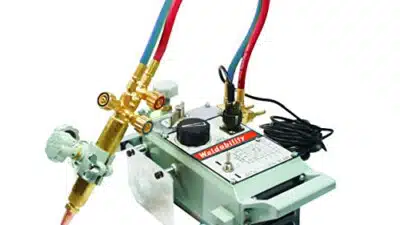

Oxy-Acetylene Straight Line Cutting Machine (BCG31I110) – 110v
Portable, automatic straight-line cutting machine available in 110v or 240v input power supply. (This listing is for the 110v machine).
Simple design with an easy-to-use interface, these machines can cut straight lines, circles (with a radius of 20cm-2m), and bevels on steel ranging from 5mm to 50mm in thickness. The travel speed can be adjusted continuously, allowing for high-quality cuts in both forward and reverse directions.
The machines are manufactured using robust and compact materials, including brass and stainless steel machined components. They come with a 1.8m distortion-proof steel track (additional lengths can be purchased per meter with part number BCG30ITRK) and a variety of cutting nozzles. For circle cutting, a guide is provided with part number BCGCIRCLE31.
Supplied With
- 2 x 1.2M length of distortion-proof steel track
- A selection of cutting nozzles
- Cuts straight lines, circles, 20cm-2m radius
- Bevels on 5mm-50mm thick steel
- Simple design with easy-to-use interface
- 110v input power supply
Features
| Power Frequency | 50HZ |
| Power Voltage | 220V (+/-10%) or 110V (as stated on the machine’s front panel) |
| Cutting Speed | 150-800mm/min |
| Motor Rotation Speed | 1500r.p.m |
| Cutting Accuracy | Straight line, Circle, up to 45-degree angles |
| Cutting Thickness | 5-50mm |
| Machine Weight | 7.0 KG |
| Machine Weight (with one Torch Fitted) | 9.5 KG |
| Machine Dimensions | 350 x 140 x 175mm |
| Length of the Guide Rail | 1.8 metres |
| Track Width | 160mm |
Basic Data
| Part Number | BCG31I110 |
| Weight | 11.5 KG |
| Track Length | 1.8M |
| Metal Thickness | 5-50mm |
| Circle Radius | 0.2 – 2 M |
