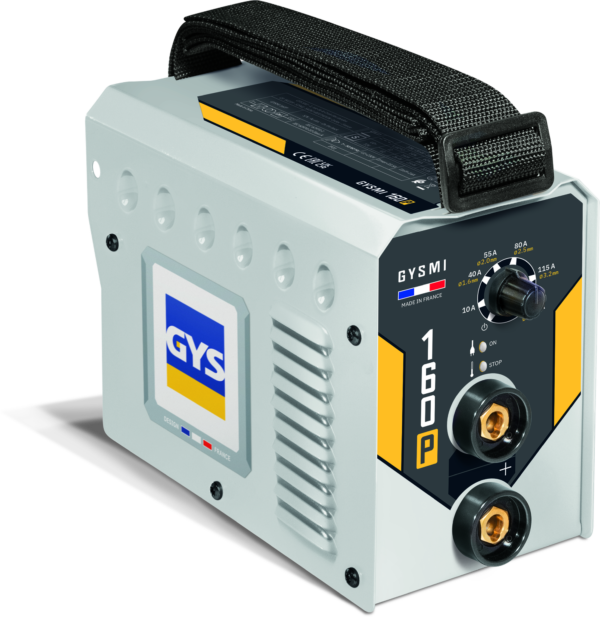

MMA Inverter Welder GYS GYSMI 160P 10-160A Microprocessor 4kg with Case
Price Promise
Found it cheaper? We will match it.
Price Match is available on products showing this message, including this GYS one. Send us the competitor's link and your delivery postcode, and we will confirm the matched price before you order.
- 1Send us the competitor's link
- 2Add your delivery postcode
- 3We confirm the price before you order
Identical new products from established UK retailers, total price including VAT and delivery, UK mainland only. Read the full terms
- Portable MMA inverter welder with 10-160A output, weighing just 4 kg
- Works with all electrode types: rutile, basic, stainless steel and cast iron
- Hot Start, Anti Sticking and Arc Force functions for reliable arc stability
The GYSMI 160 P is a microprocessor-controlled MMA inverter welding unit delivering 10-160A output. Its compact design and low weight make it highly portable, whilst its inverter technology provides smooth, stable arcing with excellent penetration across all electrode types.
Features
- Hot Start function delivers increased power at start
- Anti Sticking prevents electrode sticking
- Arc Force provides instantaneous current increase in difficult welding situations
- Works with rutile, basic, stainless steel and cast iron electrodes
- Direct current for very smooth melting
- High no-load voltage for immediate arc initiation
- Constant welding power output
- Protected against supply voltage variations of +/-15% and suitable for use with generator sets
- Supplied in protective suitcase with earth cable (1.6m, 16mm²) and electrode holder (2m, 16mm²)
| Specification | Value |
|---|---|
| Welding current range | 10-160 A |
| Input voltage | 230 V, 1 phase, 50/60 Hz |
| Input current (at 60% duty cycle) | 16 A |
| Weight | 4 kg |
| Dimensions | 27 × 17 × 11 cm |
| Duty cycle at rated output | 60% |
| Protection rating | IP 21 |
| Recommended generator size | 7.5 kVA |
| Brand | GYS |
| Pulse Welding | Non-Pulse |
| Cooling | Air Cooled |
| Power Source | Workshop 230V/240V (Single-Phase) |
| Applications | General Fabrication (160-210A) |
| Duty Rating | Light Duty (<30%) |
| Portability | Ultra-Portable |
| Enclosure Rating | IP21 / IP21S |
| MMA Duty Cycle | 14% at 160A |
| Welding Process | MMA |
Technical Data Sheet
Download PDFA carriage charge is applied to orders, for standard 1-2 day shipments to mainland destinations within the United Kingdom. Other destinations and premium services are available but subject to additional freight charges.
