MIG Welder GYS Easymig 150 Multi-Process MIG/MAG Cored Wire MMA Single Phase 9.6kg
Price Promise
Found it cheaper? We will match it.
Price Match is available on products showing this message, including this GYS one. Send us the competitor's link and your delivery postcode, and we will confirm the matched price before you order.
- 1Send us the competitor's link
- 2Add your delivery postcode
- 3We confirm the price before you order
Identical new products from established UK retailers, total price including VAT and delivery, UK mainland only. Read the full terms
- Multi-process inverter: MIG/MAG, cored wire and MMA welding
- Ultra-light and portable at 9.6 kg with ergonomic handle
- NO GAS ready to weld with cored wire capability

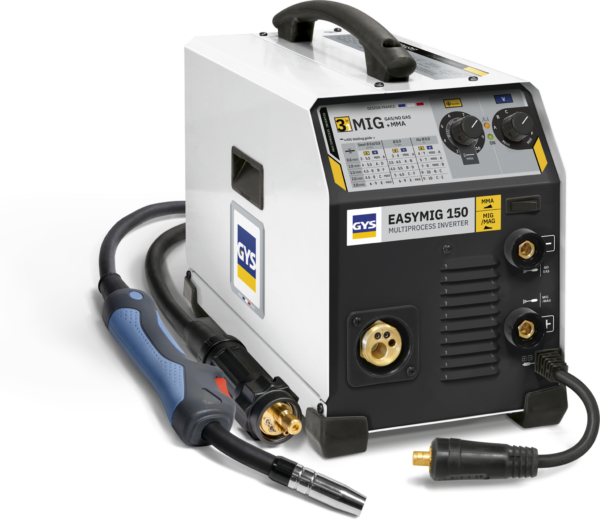

The EASYMIG 150 is a semi-automatic inverter welding machine that combines MIG/MAG, cored wire and MMA welding processes. Its compact, lightweight design makes it highly portable, whilst inverter technology ensures excellent welding current quality and low power consumption. Recommended for welding steel, stainless steel and aluminium.
Features
- Voltage set selection from 15 to 21 V
- Wire speed selection from 3 to 10 m/min
- Integrated wire feeder compatible with ø100 (1 kg) and ø200 (5 kg) wire reels
- NO GAS welding capability with cored wire
- Can weld rutile electrodes
- Antisticking feature prevents electrode sticking at start
- Two colour LED display showing thermal protection and power status
- Reinforced mechanical structure with shock and vibration absorption pads
- EURO torch for fast assembly and disassembly
- Two rollers motor with supplied rollers for steel (0.8 mm) and no gas (0.9 mm) welding
| Specification | Value |
|---|---|
| Weight | 9.6 kg |
| Input power | 230 V single phase, 16 A |
| Output current range | 20 to 140 A |
| Wire diameter (MIG/MAG) | 0.6 to 0.8 mm |
| Electrode diameter (MMA) | 1.6 to 3.2 mm |
| Duty cycle at 60% (140 A) | 15% |
| Input Voltage / Phase | 230V |
| Cooling | Air Cooled |
| Brand | GYS |
| Welding Process | MIG/MAG, MMA |
| Applications | Sheet Metal Fabrication (<100A), Light Fabrication (100-160A) |
| Amperage (Min) | 30 |
| Amperage (Max) | 140 |
| Power Source | Workshop 230V/240V (Single-Phase) |
| Duty Rating | Light Duty (<30%) |
| Portability | Ultra-Portable (<15kg) |
| Synergic Control | No |
| Power Source Type | Inverter |
| Flux Compatible | Yes |
| Pulse Welding | Non-Pulse |
| Wire Feed Type | Compact Integrated Wire Feed |
| Cooling | Air Cooled |
| Max Wire Thickness | 0.8mm Wire |
| Wire Reel Capacity | 1kg, 5kg |
Technical Data Sheet
Download PDFA carriage charge is applied to orders, for standard 1-2 day shipments to mainland destinations within the United Kingdom. Other destinations and premium services are available but subject to additional freight charges.
