Description

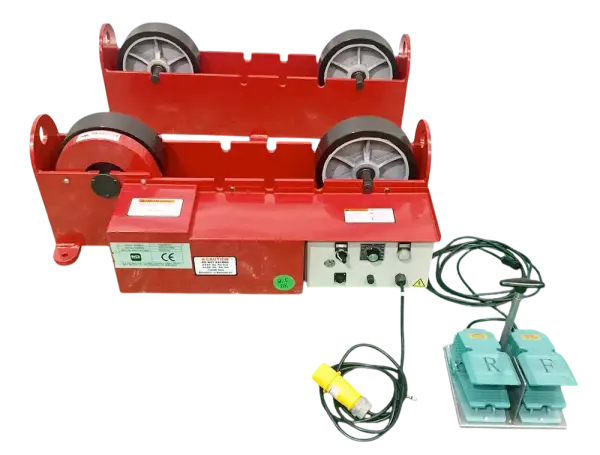

3 Tonne Pipe Rotators 50 mm – 1200 mm
These versatile welding rotators are suitable for a variety of welding applications enabling you to complete rotary welds on circular components in the most efficient and ergonomic way.
- The compact design makes it ideal for bench or floor mounting and is available in 220 Volt or 110 Volt.
- Machine Mounted Control Panel for forward / reverse control, Power On/Off and Speed control
- Supplied with Footswitch for Forward and Reverse control
- Pipe range: 100mm – 1200mm
- Variable Rotation speed, max roller speed 4000mm / Min
Specification
| Capacity (Loading) | 3 Metric Ton |
| Capacity (Turning) | 4.5 Metric Ton |
| Vessel Size (Min.) | Φ100 mm at 60° included Angle |
| Vessel Size (Max.) | Φ1200 mm at 60° included Angle |
| Tyre Type and Size | Polyurethane, Φ254mm x 76.2mm |
| Electrical Panel | Yes |
| Control Means | Foot Switch Control Cable (3m) |
| Incoming Supply | 110V-1P-50Hz |
| Roller Drive Motor | DC Motor |
| Roller Speed | 0 to 4000mm/min |
| Surface Preparation | Grit blast to SA2.5 |
| Painting | Spray Painting |
| Colour | Red |
| Weight | 177kg |
Technical Data Sheet and dimensions can be found in “Documents” section
