Description

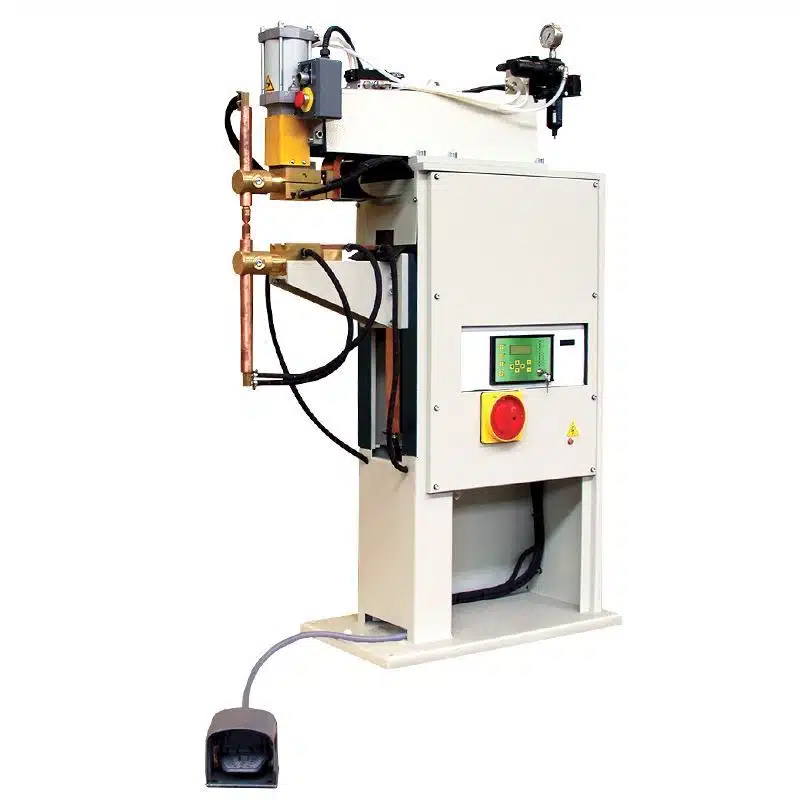

60 kVA Spot/Projection Welder c/w TE550 400V 50Hz
The TECNA 8005D single-phase AC press / projection-type welder is an excellent choice for stand-alone resistance welding tasks. Coupled with value-added feeding systems, tooling, or part of an integrated robot cell, TECNA press / projection-type welders can provides years of years of consistent, reliable service.
Furthermore, the TECNA 8005D high-performance 60 kVA welder is the perfect pedestal welder for a variety applications, including:
- Nut Welding
- Stud Welding
- Multi-Gun Welding
- Spot Welding
- Projection Welding
- Mid-Frequency Welding
Features
- Cylinder with chrome plated stem for heavy duty works and long life; adjustable anti-rotation device
- Lubrication free pneumatic components to eliminates oil mist and to protect the environment
- Double-stroke cylinder with key control
- Built-in compressed air filter unit
- Compressed air disconnecting device
- Water-cooled transformer, plates, electrode-holders and electrodes
- Transformer with epoxy resin coated windings
- Electrodes speed control valves, shock absorber for end of stroke and air discharge silencers assuring the minimum noise
- Two stage electric foot control for clamping and welding pieces only if correctly positioned
- Pre-setting for additional double stage electric foot connection for the direct recalling of welding program no 2

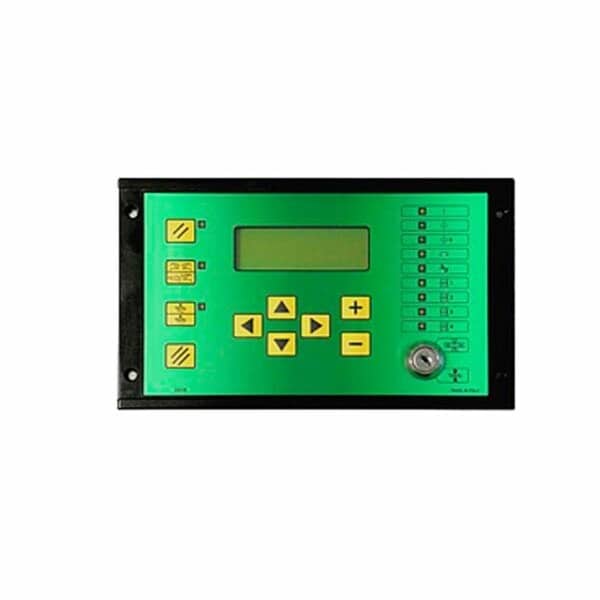

- TE550 costant current control unit
- Synchronous SCR contactor insulated from cooling water circuit with protection thermostat
- Standard on all models: two-hand safety control with timer assuring the best safety, and removable key selector The two-hand control push-buttons are standard on projection models only (thay are available on request on spot welder models)
- Emergency push-button to stop the machine immediately
Options
- 8030 Valve to stop the flow of the water cooling when the machine is off and flow switch which makes the welder stop if the cooling water does not circulate
- 8031 Longer arms length for item 8005D (L=500 D=380)
- 8032 Longer arms length for item 8007D (L=550 D=420)
- 8033 Double stroke control device with pneumatic foot instead of key one To be used only for spot welding when the work necessarily requires it
- 8037 Proportional valve
- 8042 Rotary selector for the welding program recalling
- 8043 head descent without pressure
- Costant energy welding control unit
