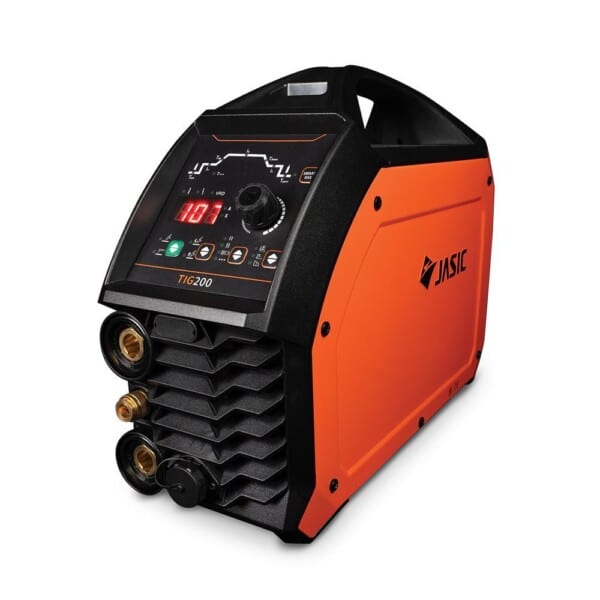

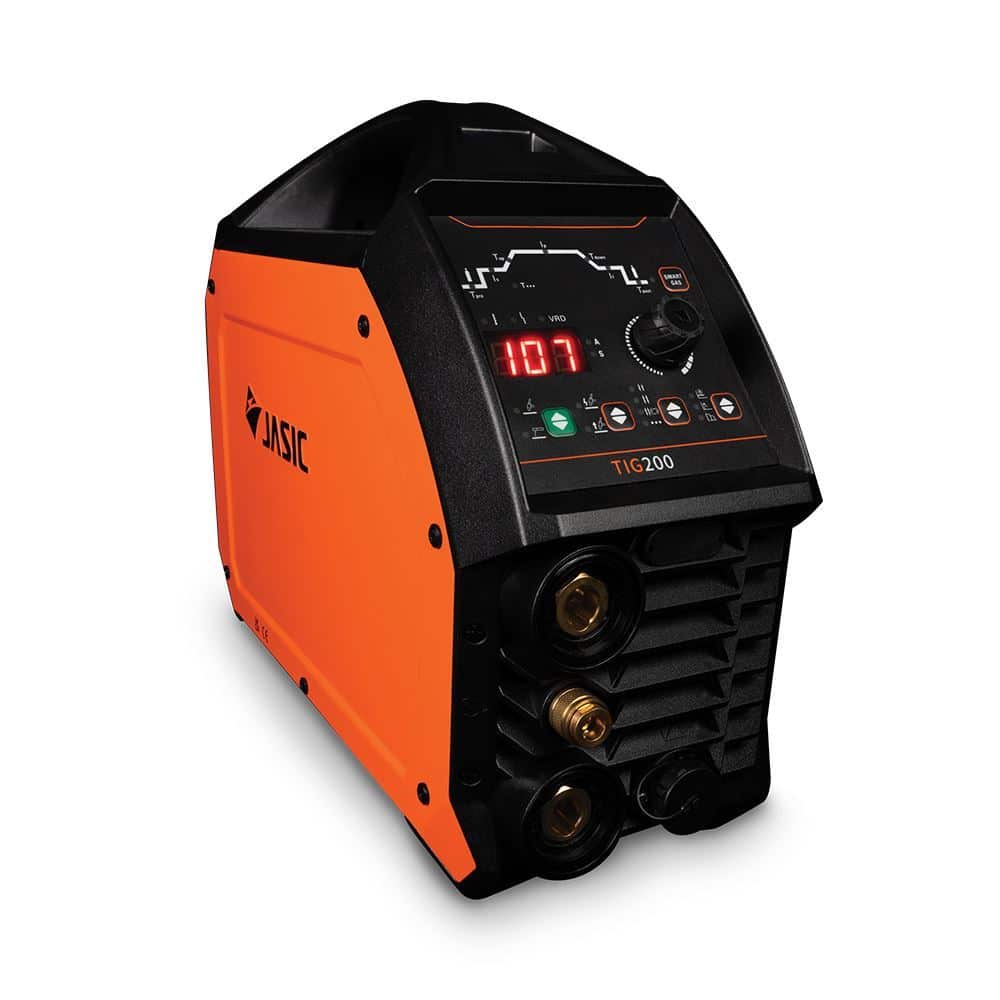

Jasic EVO Power TIG 200 c/w Case & Torch

Key Features

• Rugged, ergonomic design with Dash-Arc.
• Smart Lift TIG with full DC TIG parameters.
• ABAP for balanced air passage and smart gas optimization.
• Fan-on-demand, VRD, and protection for electronic components.
• Overcurrent/overheat protection.
• Includes protective case and TIG leads.

Technical Data

• Input Voltage: AC 230V, 50/60Hz
• No Load Voltage: 62V
• Efficiency: 86%
• Power Factor: 0.68
• Idle Power: 25W
• Protection Class: IP23S
• Insulation Class: H
• Dimensions: 413 x 150 x 311mm
• Weight: 7.5kg
• Recommended Generator Size: 9kVA (AVR required)

TIG Welding:

• Ieff: 12.1A
• Input Power: 6.2kVA
• Current Range: 5-200A
• Duty Cycle (@ 40°C): 20%

MMA Welding:

• Ieff: 12.9A
• Input Power: 6.7kVA
• Current Range: 10-160A
• Duty Cycle (@ 40°C): 20%

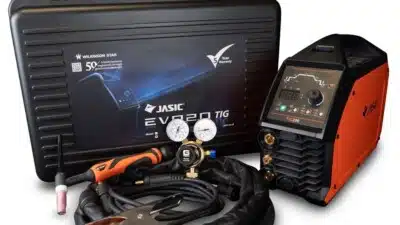

Accessories Included

• Protective carry case.
• 4m TIG torch (JE79-ERGO).
• Argon regulator and gas hose.
