Description

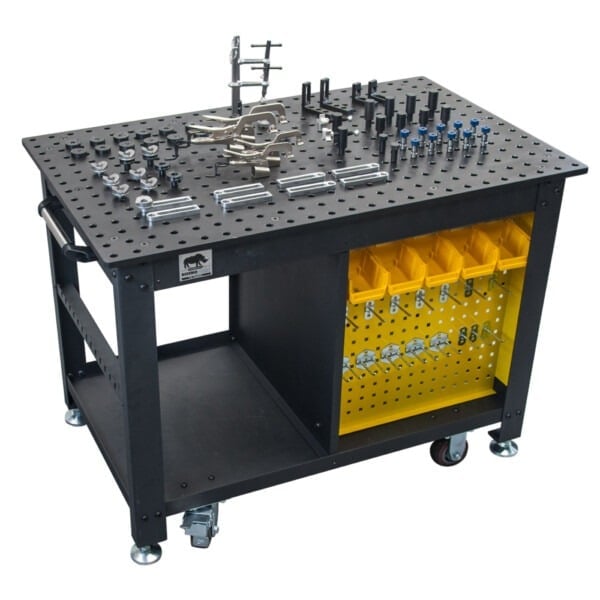

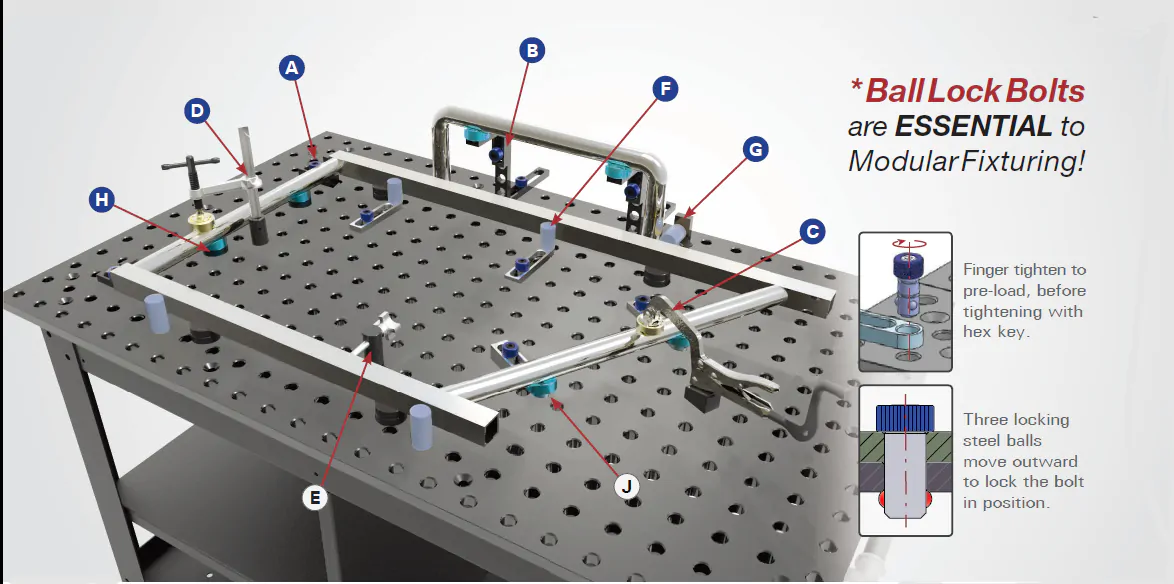

Rhino Cart Mobile Fixing System with 66 Piece Fixture Kit
The Rhino Cart Mobile Fixturing Station is a turnkey system for fixturing and clamping in welding and fabrication. Clamp and fixture at any point on the reversible, flat, nitrided (heat treated) 1,200 x 750 mm tabletop for accuracy in all of your setups.
Rhino Package Part No.: TDQ612075-K1
Package Includes

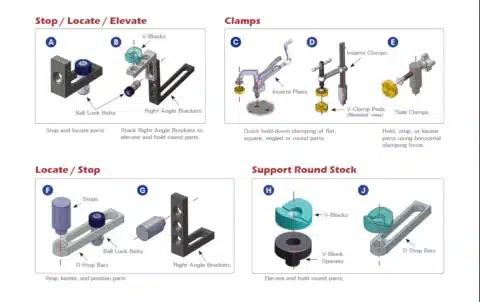

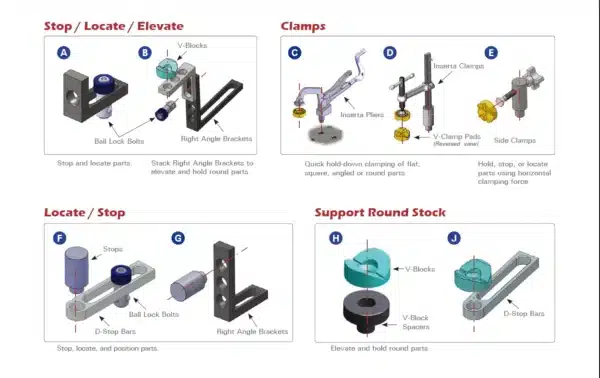

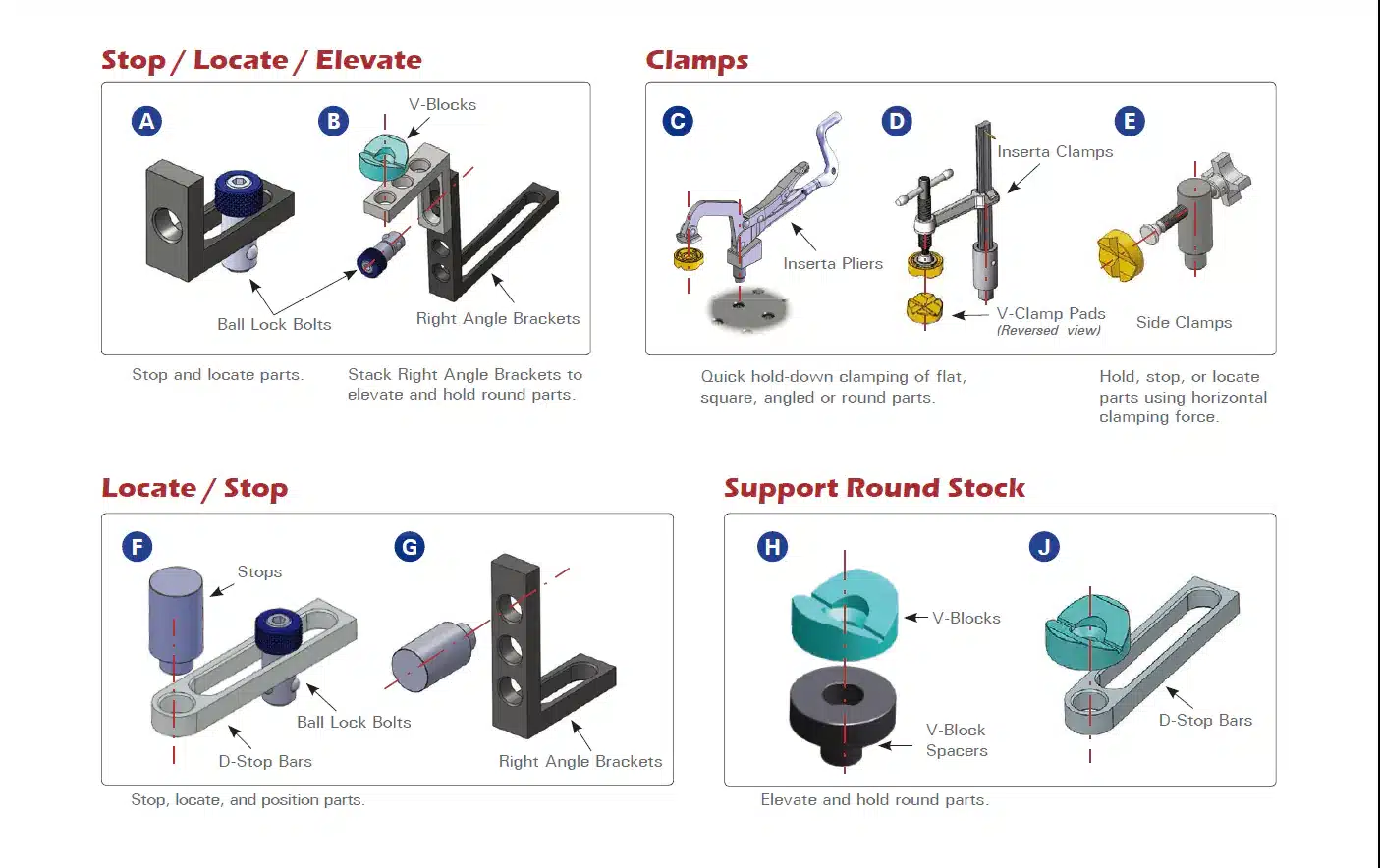

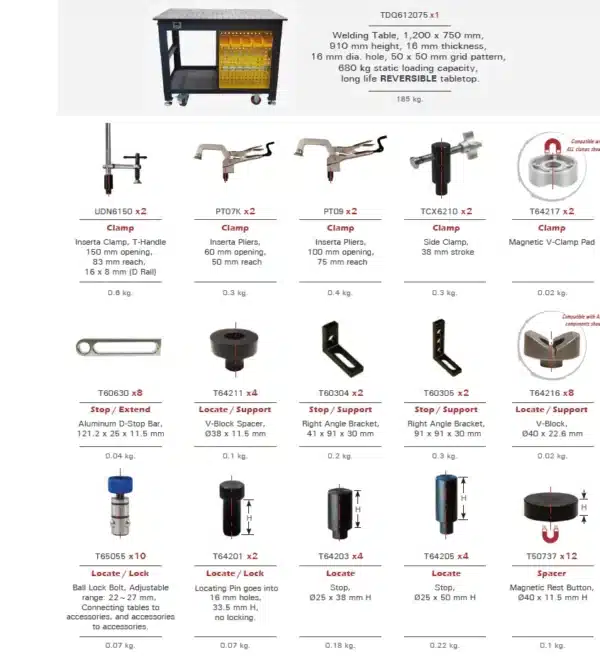

| Item | Part No. | Description | Quantity |
|---|---|---|---|
| 1 | TDQ612075 | Welding Table, 1200 X 750 mm, 910 mm height, 16 mm thickness, 16 mm hole, 50 X 50 mm grid pattern, Nitrided Finishing Tabletop, Adjustment Height Range by Leveling Pad from 0 – 50 mm, 680 kg static loading capacity | 1 |
| 2 | T65055 | Ball Lock Bolt, Adjustable range: 22 mm – 27 mm. Connecting tables to accessories and accessories to accessories | 10 |
| 3 | T64201 | Locating Pin goes into 16 mm holes, no locking | 2 |
| 4 | PT07K | Inserta Pliers, 60 mm opening, Max. 50 mm reach | 2 |
| 5 | PT09K | Inserta Pliers, 100 mm opening, Max. 75 mm reach | 2 |
| 6 | UDN6150 | Inserta Clamp, 150 mm opening, 83 mm reach, 16x 8 mm (D Rail), T-Handle | 2 |
| 7 | T64217 | Magnetic Top V pads for Inserta Pliers and Inserta Clamps | 2 |
| 8 | TCX6210 | Side Clamp, 38 mm stroke | 2 |
| 9 | T64203 | Stop, 0 25x 38 mm | 4 |
| 10 | T64205 | Stop, 0 25×50 mm | 4 |
| 11 | T64216 | V-Block, 0 40 X 23 mm | 8 |
| 12 | T64211 | V-Block Spacer, 0 38×11.5 mm | 4 |
| 13 | T60630 | D-Stop Bar, 120 x 25 x 11.5 mm | 8 |
| 14 | T50737 | Magnetic Rest Button, 0 40×11.5 mm | 12 |
| 15 | T60304 | Right Angle Bracket, 41 X 91 X 30 mm | 2 |
| 16 | T60305 | Right Angle Bracket, 91 X 91 X 30 mm | 2 |
Features
- 16 mm thick steel plate reversible tabletop
- Nitrided black oxide protective finish
- Wear resistant
- Rust, resistant
- Weld spatter resistance.

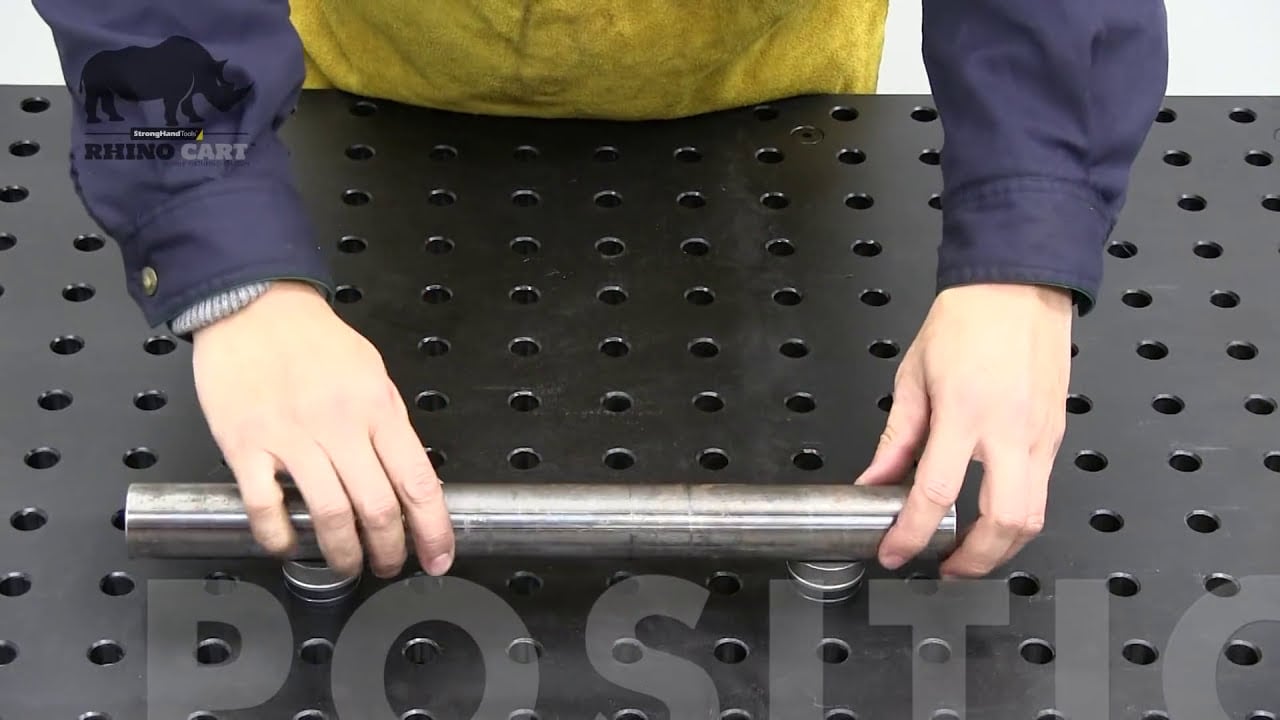

- Accurately position parts in CNC precision bored 16 mm dia. Holes
- Holes 50 x 50 mm spacing pattern.
- 50 x 50 mm grid
- Fixture Kit
- Mobility
- Storage
Specifications
| Tabletop Size | 1,200 x 750 mm |
| Tabletop Thickness | 16 mm |
| Hole Diameter | 16 mm |
| Table Height | 910 mm |
| Static Loading Capacity | 700 kg |
| Package Net Weight | 195 kg |
