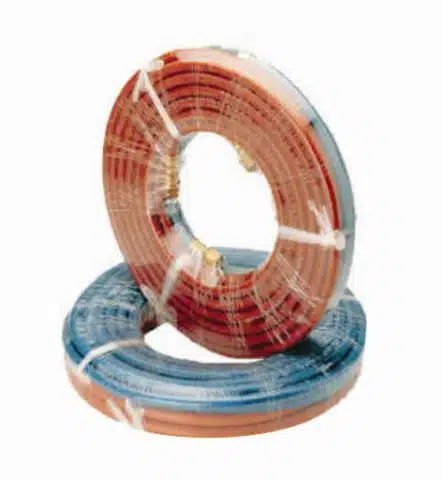

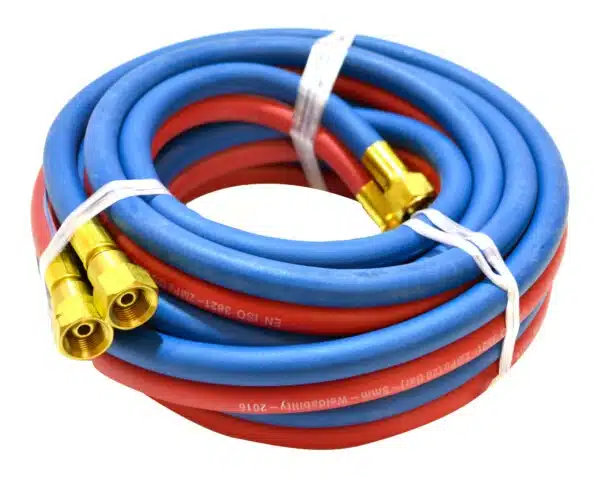

Fitted Oxy-Acetylene Twin Hose Set (3/8″ Fittings) – 8 mm x 20 m

Description

Fitted Oxy-Acetylene Twin Hose Set (3/8″ Fittings) – 8 mm x 20 m

Set of 2 high quality oxy/fuel hose assemblies conforming to BS EN 559 and ISO 3821:2010, manufactured from EPDM compound for high abrasion and weather resistance, with high compression fittings and flame trap hose check valves.

Sold as a set of 2 in a variety of hose length and hose diameter combinations to suit oxygen and propane cutting and welding gases.

Features

• High compression fittings
• Hose check valves approved to BS 6158.
• Sold as a set of 2
• Manufactured from EPDM compound
• BS EN 559 : 1997 & DIN 8541

Specification

Additional Information

The Weldability range of fitted hoses and hose sets are complete, ready-made gas-hose solutions, which remove the need for time-consuming hose nut, tail and check-valve attachment.

They are manufactured to a level of quality beyond that achievable  when manually constructed by hand, with the inclusion of high compression fittings at each end of the hose to ensure reliable, gas-tight connections to the hose check valve (at the regulator end) and hose-tail / hose-nut configuration (at the torch end).

Fitted hoses and hose sets are available in 6mm bore diameter with either 1/4” or 3/8” fittings, and 8mm or 10mm bore diameters and 3/8” fittings at each end. Blue hoses are used with oxygen, red hoses are used with acetylene, orange hoses are used with propane gas.

The FT on each part number signifies that the hoses are fitted with non-return flame traps.

Technical Specification

All fitting measurements are to BSP imperial standards.
