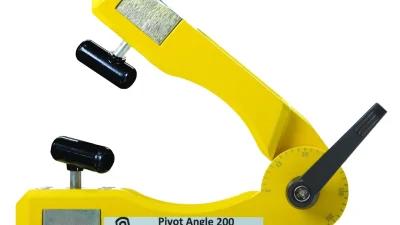

Magswitch Pivot Angle 200 Work Holding Tool 97.5 kg Hold 28 to 270 Degrees

Magswitch Pivot Angle 200 Work Holding Tool 97.5 kg Hold 28 to 270 Degrees

8100367 Magswitch In Stock Fast Dispatch
Price per unit
£184.57 ex VAT
£221.48 inc VAT
Save %
Was £ ex VAT
  • Pivot angle workholding tool with 215 lb (97.5 kg) max breakaway per arm
  • Angle range from inside 28 to 270 degrees
  • Dial on the elbow has indicators every 5 degrees
  • Single elbow pivot point locks and unlocks quickly with a lever
  • Magswitch on each side enables securing to table or wall whilst holding the workpiece
or
Secure Payment Methods:
Visa Mastercard Maestro PayPal Google Pay Apple Pay
Trustpilot

A single pivot point is located on the elbow. The elbow joint locks and unlocks quickly with a lever.

The dial on the elbow features indicators every 5 degrees. On each axis a Magswitch is exposed on a side to enable the tool to secure to a table or wall, while simultaneously holding the work piece. Suited to repetitive work on uncommon angles.

Features

  • On/Off Magswitch magnet designed to stay clean
  • Pivot range from inside 28 to 270 degree angles
  • Accommodates both flat and pipe materials
  • Single lock on elbow allows for fast securing of angles
  • Dial indicators every 5 degrees for adjustment
  • Each side of the magnet can be turned on and off separately

Benefits

  • Fast and easy setup for odd angles
  • Can be used without an additional helping hand
  • Accommodates a wide range of odd angles
  • On/Off control for easy and precise placement without fighting the magnet
  • No time spent cleaning the magnet for use, unlike older switching technology
Max Breakaway 215 lbs / 97.5 kg on 4.7 mm steel plate
2:1 Shear Working Load 48 lbs / 21.7 kg
Full Saturation Thickness 4.7 mm
Product Weight 0.8 kg
Dimensions 231.1 x 99 x 162.5 mm
Magnetic Pole Footprint 41.25 mm x 56 mm
Brand Magswitch

Product Datasheet

Download PDF
