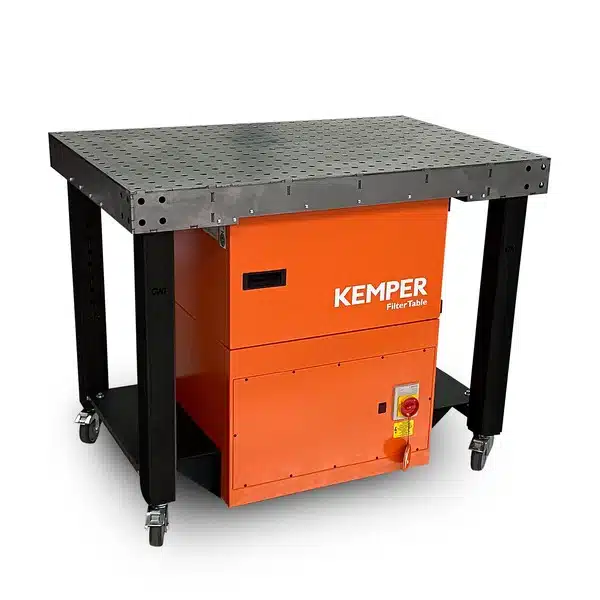

KEMPER Welding and Filter Table GWT 400V/50Hz
Combination Of Welding Table And Filter Unit
Benefits
- Maintenance door allows easy filter change
- Effective spark protection ensures maximum safety
- Clamping options via clamping hole Ø 16mm
- Downdraft extraction throughout the whole working area
- Wide range of applications due to large working area of 1,200 x 800 mm
- Dense bore grid 50mm
- Smooth repositioning by means of rollers
Properties
- Large, robust material support
- Activated charcoal filter (optional)
- Load capacity up to 1000kg (static)
- Down-draft system
- Protective wall enclosure (optional)
Applications
- Low to medium levels of smoke and dust
- Occasional to frequent use

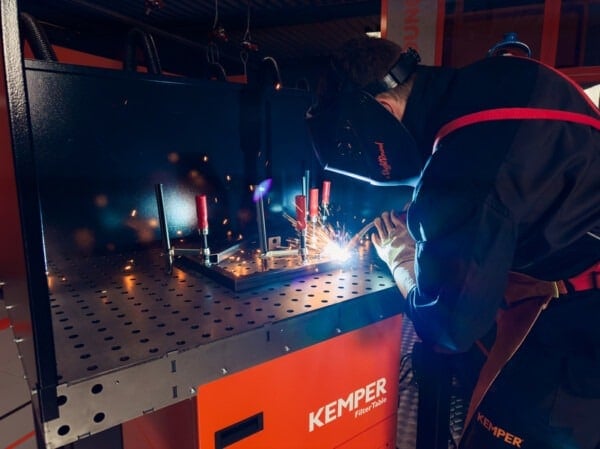

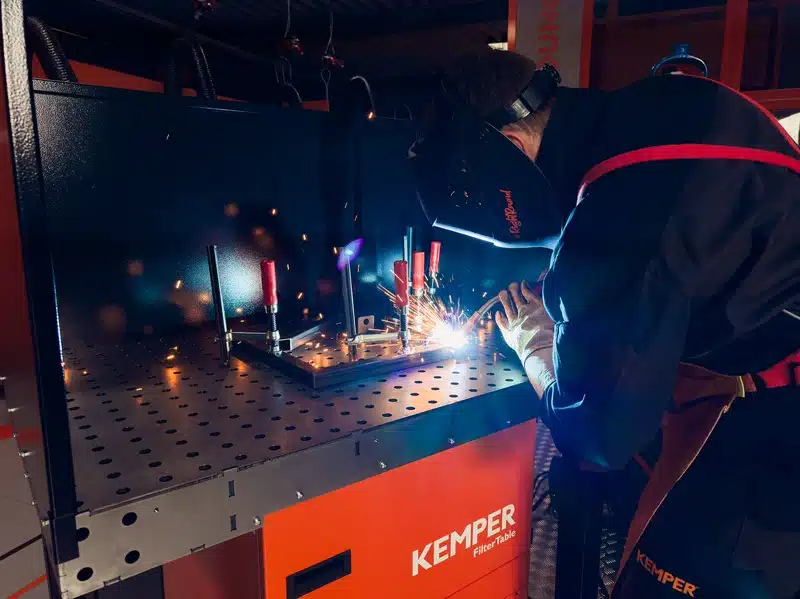

- Welding and grinding
- Cobot applications
Variants
- Other voltages
Filter
| Filter stages | 2 |
| Filter method | Storage Filter |
| Filter surface | 15.8 m² |
| Type of filter | Filter cassette |
| Filter material | Non-woven fibre |
| Filter Class | F9 |
Basic data
| Extraction capacity | 1400 m³/h |
| Dimensions (w x t x h) | 1200 x 800 x 970 mm |
| Weight | 245 kg |
| Motor power | 1.5 kW |
| Power supply | 3 x 400 V / 50 Hz |
| Rated current | 3.2 A |
| Noise level | 71 dB(A) |
Additional information
| Fan type | Radial fan |
