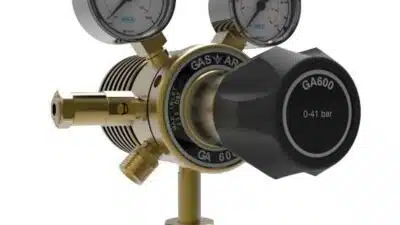

GA600 High Pressure Fuel Gas Manifold Regulator RAN07106

SKU: RAN07106Gas ArcIn Stock

£598.14 ex VAT£717.77 inc VAT

BULK ORDER OR CUSTOM QUOTE?
For the best deal tailored to your project contact us.

  • Entry Point: Suitable for both cylinder and manifold mounting
  • Inlet Connection: BS341 No.4 / 5/8 L/H
  • Outlet Connection: G3/8 BSP L/H Male
  • Inlet Max Pressure: 230 bar
  • Outlet Max Pressure: 0-41 bar
  • Purity Grade: Designed for non-corrosive or toxic, technical grade gases up to grade 4.5 purity (99.995%)
  • Stages: Multi-stage (two stage piston)
  • Gas Type: Fuel Gas
Share this product

Description

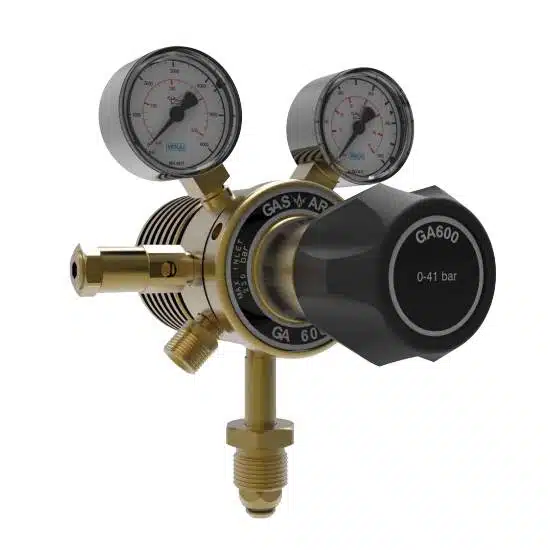

GA600 High Pressure Fuel Gas Manifold Regulator RAN07106

The GA600 High Pressure Fuel Gas Manifold Regulator RAN07106 is a premium multi-stage (two-stage piston) regulator designed for efficient control of non-corrosive or toxic, technical grade fuel gases up to grade 4.5 purity (99.995%).

This regulator excels in high flow, high pressure applications where constant delivery pressure is critical as the cylinder pressure decreases.

A popular choice in the diving industry and various process control applications, the GA600 is renowned for its largest flowrate capacity in its class and its versatility in both cylinder and manifold mounting.


Key Features:

  • Multi-Stage Design: Ensures accurate pressure control throughout the cylinder’s lifespan.
  • Low Wetted Surface Area: Minimizes contamination risks, maintaining gas purity.
  • Full Range of Outlet Fittings: Offers broad compatibility with various connection types.
  • Finned Body: Reduces the refrigerant effect for enhanced performance stability.
  • High-Capacity Pressure Relief Valve: Provides safety by effectively managing excess pressure.

Common Applications:

  • Process Control: Ideal for various industrial control applications.
  • Diving Industry: Used for high-pressure inflation and underwater operations.
  • High-Pressure Inflation: Suitable for inflating aircraft and racing car tyres.

Specifications

Type Multi-stage
Inlet Pressure (max) 230 bar
Outlet Pressure 0-41 bar
Inlet Connection BS341 No.4 / 5/8 L/H
Outlet Port G3/8 BSP L/H Male
Temperature Range -20°C to +60°C
Maximum Flow 270 m³/hr @15°C in Air at 300 bar inlet
Weight 2.8 kg

Materials:

Body Brass Barstock
Bonnet Brass Barstock
Piston Brass
Seal EPDM
Valve Seat Polychloroprene (Neoprene)
Filter Bronze

PREVIOUSLY RAN07006

Please note: If you require a test certificate with your regulator, it must be ordered at the same time. Our certification product can be found here: Gas Arc Regulator Test Certificate

Data Sheet can be found in Documents Section
