Fibreglass Weld Backing Tape – 4.0″ (102 mm) x 41″ – 200 degC

Description

Fibreglass Weld Backing Tape – 4.0″ (102 mm) x 41″ – 200 degC

How FiBack Tape Works

A Simple 3 Step Application Process

Eliminate / Reduce The Need For Back Purging

FiBack Tape is a heat resistant aluminium tape with a woven fiberglass center strip, designed to eliminate or reduce the need for purging and create a weld pool enclosure.

How to Use

• Peel away backing tape covers from both sides.
• Gently coil the adhesive tape edges back and push the woven fiberglass strip outwards.
• Centre and apply the woven fiberglass strip firmly to the backside of the root gap.
• Beginning from the centre and slowly moving outward, apply the adhesive aluminium tape to the area surrounding the root gap, providing a smooth, air-free seal.

Benefits

• Reduces setup time
• Eliminates/minimizes need for back purging
• Reduces post-weld grinding
• Cuts down on post-weld clean up
• Increases weld productivity, reduces costs
• Heat resistant

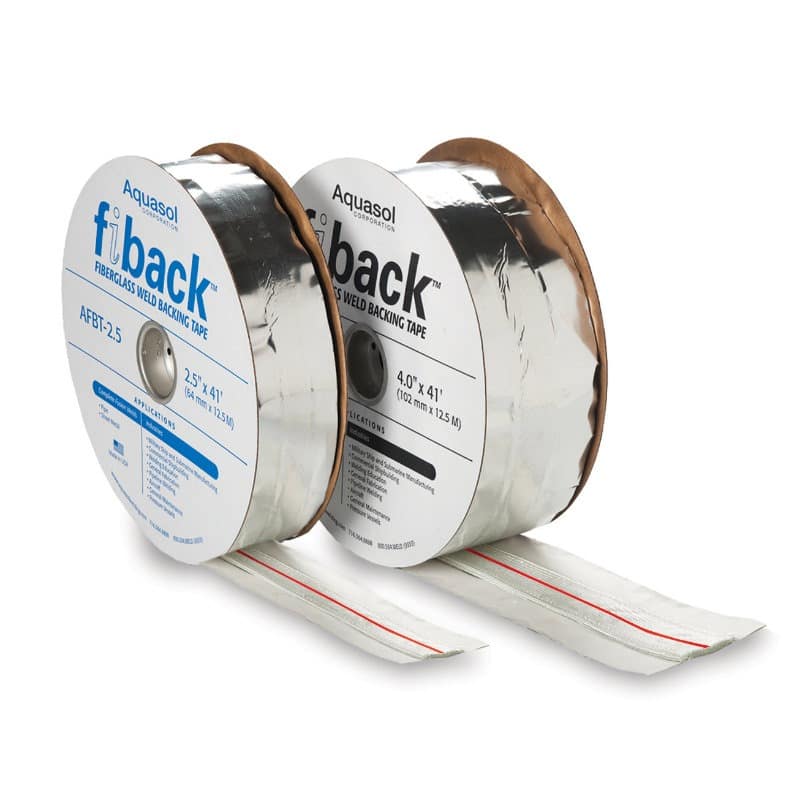

FiBack Tape AFBT-2.5:

• Width: 2.5″ (64 mm)
• Length: 41′ (12.5m)

FiBack Tape AFBT-4.0:

• Width: 4.0″ (102 mm)
• Length: 41′ (12.5m)

HEAT RESISTANCE: 200°C
