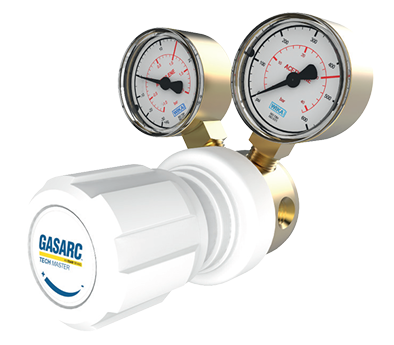

Tech-Master GPS410 Single Stage 2 Gauge Cylinder Regulator (Acetylene)
BULK ORDER OR CUSTOM QUOTE?
For the best deal tailored to your project contact us.

Tech-Master GPS410 Single Stage 2 Gauge Cylinder Regulator (Acetylene) - Side Entry, 1.5 bar, Grade 4.5, Tech Master

GPS410-01-02-01-01-012-08-A/3960002428 Gas Arc In Stock Fast Dispatch
Price per unit
£218.60 ex VAT
£262.32 inc VAT
Save %
Was £ ex VAT
  • Single stage diaphragm cylinder regulator for acetylene gas
  • Maximum inlet pressure 25 bar (360 PSI), delivery pressure 1.0–1.5 bar (15–22 PSI)
  • Brass barstock body with neoprene diaphragm and 10 micron stainless steel filter
  • BS 341 No.4 inlet with 3/8 BSP male left hand outlet
  • Operating temperature range −20°C to +60°C, weight 1.2 kg
Required
Required
Required
Required
or
Secure Payment Methods:
Visa Mastercard Maestro PayPal Google Pay Apple Pay
Trustpilot

Comprising of: Cylinder Connection, Cylinder Contents Gauge, Outlet Pressure Gauge, Outlet Connection

Please note: If you require a test certificate with your regulator, it must be ordered at the same time. Our certification product can be found here: Gas Arc Regulator Test Certificate

The Tech Master GPS410 Series single stage diaphragm cylinder regulators are designed for primary pressure gas control of technical grade Acetylene gas up to 4.5 purity (99.995%), on applications where slight pressure variation from decreasing cylinder pressure is acceptable.

Key Features

  • Five port configuration
  • Rear panel mounting capabilities
  • Encapsulated seat design
  • Low wetted surface area
  • Base and side entry options
  • BS 341 No.4 inlet
  • 3/8 BSP male left hand outlet
  • Full range of other inlet and outlet fittings available (see model selector chart below)

Gas Compatibility

This regulator is configured for acetylene

Body Brass Barstock
Bonnet High Strength Alloy
Diaphragm Polychloroprene (Neoprene®) (CR)
Valve Seat Polyamide (Nylon®)
Filter 10 Micron 316L Stainless Steel
Maximum Inlet Pressure 25 bar (360 PSI)
Delivery Pressure Range 1.0 bar (15 PSI) to 1.5 bar (22 PSI)
Gauges 50mm (2″) Diameter
Ports 1/4″ NPT Female
Temperature Range -20° C to +60° C (-4° F to +140° F)
Weight 1.2 kg (2.7 lbs)

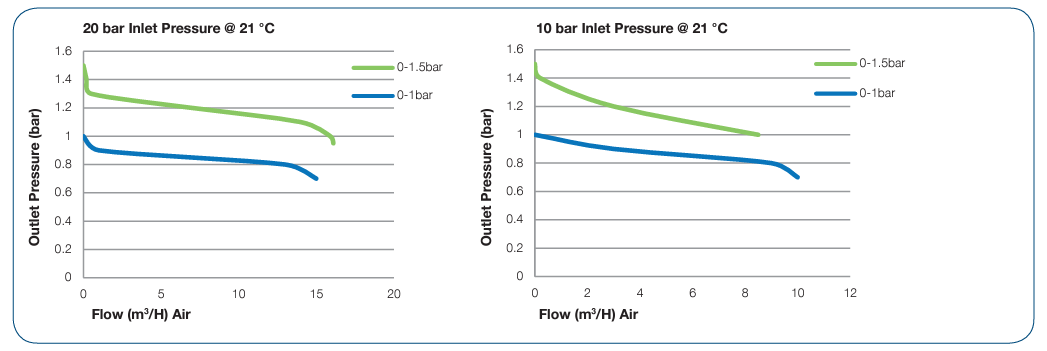

Flow Performance

GPS410 Flow Performance

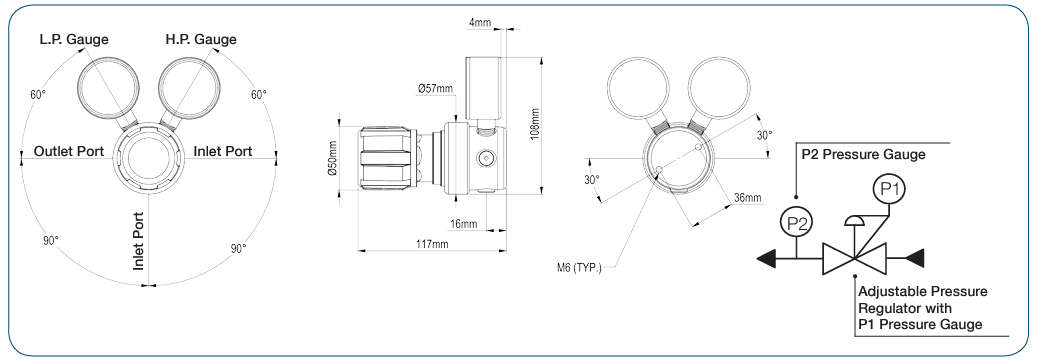

Drawings

GPS410 Diagrams

Model No. Selector Guide

For custom configuration please use the following table to create a model number and contact us for our best price (Example Model Number: GPS410-01-02-00-00-000-00-A)

Product Type Inlet Pressure Bar [Psig] Outlet Pressure Bar [Psig] Inlet Pressure Gauge Outlet Pressure Gauge Inlet Connection Outlet Connection Options
GPS410 01 25 [360] 01 0 to 1.0 [15] 00 No Gauge Fitted 00 No Gauge Fitted 000 1/4″ NPT Female 00 1/4″ NPT Female A No Options Selected
02 0 to 1.5 [22] 01 bar/PSI 01 bar/PSI 001 1/8 Stainless Steel Compression 01 1/8 Stainless Steel Compression K Certificate of Conformity
002 1/4 Stainless Steel Compression 02 1/4 Stainless Steel Compression P Calibration / Pressure Test Certificate
003 6mm Stainless Steel Compression 03 6mm Stainless Steel Compression X Special Instruction
004 1/4 NPT Male 04 1/4 NPT Male
008 G3/8 BSP L/H Brass Male 05 1/4 SAE Flare Brass Male
011 BS341 No.4 [Base Entry] 08 G3/8 BSP L/H Brass Male
012 BS341 No.4 10 Isolation Valve, 1/4 NPT Female, EPDM Seal
027 DIN477 No.3 12 Isolation Valve, 1/8 Stainless Steel Compression, EPDM Seal
028 DIN477 No.3.1 14 Isolation Valve, 1/4 Stainless Steel Compression, EPDM Seal
050 CGA510 16 Isolation Valve, 6mm Stainless Steel Compression, EPDM Seal
18 Isolation Valve, 1/4 NPT Male, EPDM Seal
22 Isolation Valve, G3/8 BSP L/H Brass Male, EPDM Seal
Brand Gas Arc
Entry Point Base Entry, Side Entry
Gas Type Acetylene
Inlet Connection BS341 No.4
Inlet Pressure 25 bar
Outlet Connection 3/8 BSP Male left Hand Outlet
Outlet Pressure 1 bar, 1.5 bar
Purity Grade Grade 4.5
SKU Entry Point Outlet Pressure Purity Grade Range Stock Status
GPS410-01-02-01-01-012-08-A/3960002428 side entry 1 5 bar grade 4 5 gas arc tech master In Stock £218.60 ex VAT £262.32 inc VAT
GPS410-01-01-01-01-012-08-A side entry 1 bar grade 4 5 gas arc tech master In Stock £218.60 ex VAT £262.32 inc VAT
GPS410-01-02-01-01-011-08-A/3960004545 base entry 1 5 bar grade 4 5 gas arc tech master In Stock £218.60 ex VAT £262.32 inc VAT
GPS410-01-01-01-01-011-08-A/3960042158 base entry 1 bar grade 4 5 gas arc tech master In Stock £218.60 ex VAT £262.32 inc VAT

Tech-Master-Regulators_GPS41GEN_Issue-1.pdf

Download PDF
