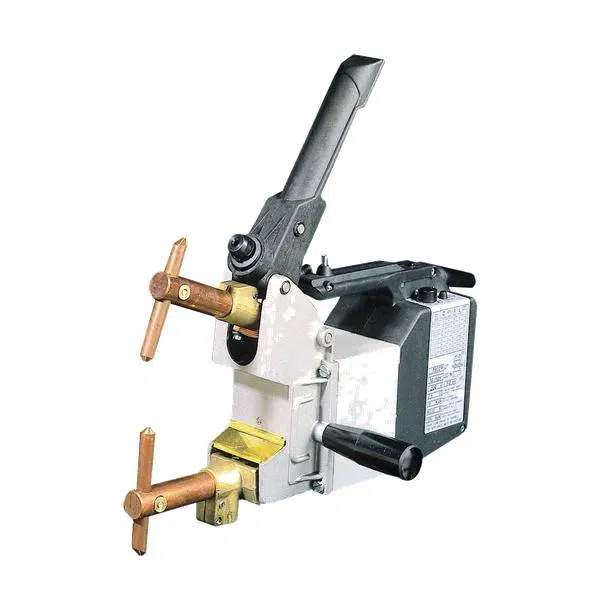

Spot Welder [Pulsed] Hand Held 2.5 Kva

7902/P

Price on application, please contact us


Product Model:
7902/P
Availaibility:
In Stock

Description

Spot Welder Hand Held 2.5 Kva

Key Features

The Tecna 2.5 KVA pulse spot welding gun is a semi-automatic handheld spot welder suitable for up to 2.5mm + 2.5mm bodyshop applications. This high performance pulse spot welder has a heavy duty transformer and provides 2 Kva @ 50%.

  • Professional, versatile and portable spot welder for auto body repair shops and maintenance shops.
  • Pulse for use on high tensile steels commonly used on todays modern vehicles
  • Synchronous built-in electronic timer with SCR from 2 to 65 cycles.
  • Compensation circuit starts the timer only when there is a proper passage of current, which enables to perform on oxidised sheets, on surfaces with paint residues or on black sheets.
  • Current control with phase shift adjustment to carry out difficult welds, on very thin thickness, on rods with reduced diameter, on stainless steel sheet and similar.
  • Cos fi control.
  • Force adjustment with scale in daN.
  • Additional arm couplings to provide larger opening between arms.
  • All transformer are coated with F class insulation material. Test are made using 4000 volts.
  • Supplied complete with 125 mm arms.
  • Large choice of arms and electrodes.

·        Technical Data

Input Voltage 230V 50 Hz
Power @ 50% 2 kVA
Maximum Welding Power 16 kVA
Welding Capacity 2.5mm + 2.5mm
Electrodes Force Short Arms daN 120 mm
Weight Kg 11

Spot Welder Technical Details
