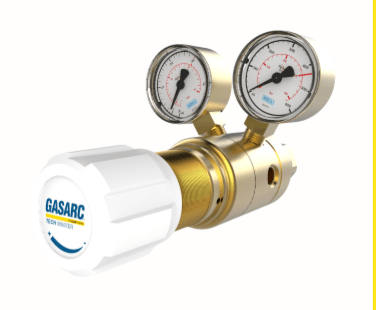

Spec Master HPT621 6 Port Two Stage Inert Gas Regulator – 3960006105
HTP621-04-10-01-01-010-00-A
The Spec Master HPT621 6 Port Two Stage Inert Gas Regulator, part of the HPT620 Series is expertly designed for precise control of non-corrosive or toxic, high purity gases up to grade 6.0 purity (99.9999%).
It is tailored for applications requiring constant delivery pressure even as cylinder pressure decreases, making it an ideal choice for various critical applications where the highest levels of gas purity and stability are essential.
Key Features:
- Six-Port Configuration: Offers extensive connection flexibility for various system needs.
- Front Panel Mounting Capabilities: Enables easy integration into a range of setups, enhancing versatility.
- Encapsulated Seat Design & Low Wetted Surface Area: Reduces contamination risks, crucial for handling high-purity gases.
- Full Range of Inlet and Outlet Fittings: Accommodates diverse gas types and connections.
- Base and Side Entry Points: Provides flexibility in installation and connection configurations.
Common Applications:
- Laboratories and Research: Ideal for settings requiring precise control of high-purity gases.
- Industrial Processes: Suitable for manufacturing and processing industries dealing with high purity gases.
- Specialized Gas Handling: Perfect for managing high-purity, non-corrosive, or non-toxic gases.
Technical Specifications
Inlet | <=300 bar BS341 No.3 |
Maximum Inlet Pressure | 300 bar (4350 PSI) |
Delivery Pressure Range | 50 bar (725 PSI) |
Outlet | 0-50 bar 1/4 NPT Female |
Gauges | 50mm (2”) Diameter |
Ports | 1/4” NPT Female |
Temperature Range | -20° C to +60° C (-4° F to +140° F) |
Flow Coefficient (Cv) | 0.079 |
Helium Leak Integrity | 1 x 10-9 mbar l/s |
Weight | 2.0 kg (4.4 lb) ** |
Options | A (Gas Arc Brand) |
* Subject to cylinder connection – ** Cylinder connection not included
Materials
Body | Nickel Plated Brass Barstock |
Bonnet | Nickel Plated Brass Barstock |
Piston | Brass |
Seal | FKM / EPDM |
Valve Seat | PCTFE |
Filter | 10 Micron 316L Stainless Steel |
Please note: If you require a test certificate with your regulator, it must be ordered at the same time. Our certification product can be found here: Gas Arc Regulator Test Certificate
Data Sheet can be found in Documents Section
