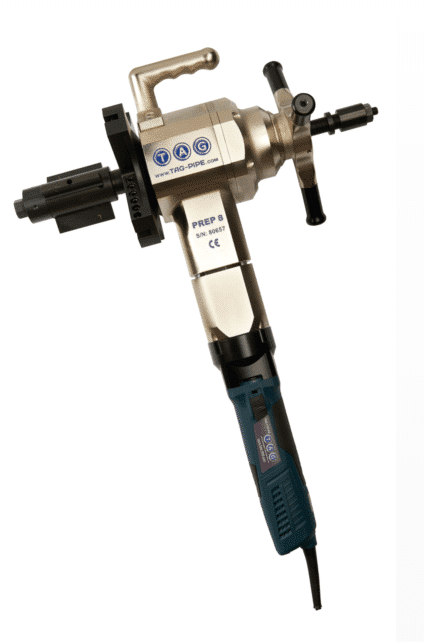

Pipe Prep 8 Electric Portable Pipe Bevelling Machine 110volt
Range: 50 – 203 mm i/d
- External Bevelling
- Internal Bevelling
- Weld Removal
- J-Prepping & Compound Bevels
Materials: Any kind of steel and Exotic alloy
Power: Pneumatic or Electric.(110v or 220v)
One of our most powerful and popular i/d locking, inline feed end prep machines. This is mainly due to its inpressive 2” to 8” working range and unrivalled power.
The prep 8 is a portable, one man operation machine, its power to weight ratio, and offset 4 jaw tool holder(chuck) allows use of up to 4 insert or
form tools to enables simultaneous external, internal bevelling of even the heaviest wall pipe & tube.
The prep 8 is a real workhorse its size, power, and functionality, make it extremely popular in high volume heavy duty bevelling applications, on site,
or in the fabshop.
The Prep 8 is torque reactive. this means that the pipe or tube does not have to be fixed to be beveled, making it particularly useful on-site, in
maintenance and repair situations. this is due to the design and strength of the thru shaft system that locks to the bore of the pipe.
Features & Advantages
the Jaw system itself consists of 3 equilaterally positioned machined jaw segments, retained and locked on an inner, ‘grooved’ expansion shaft.
these grooves keep the jaws held securely in position, unlike other systems that use a metal or rubber bands for jaw retention. as the expansion nut is is tightened, the jaws expand, locking tightly, and square to the bore of the pipe.
