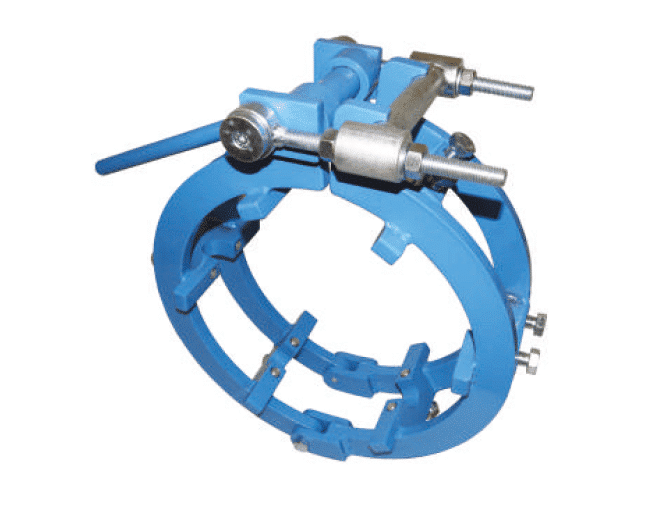

MANUAL CAGE CLAMP 10”
External Pipe Alignment Clamps are available in sizes ranging from 2” to 60”. The Cage clamp is designed to achieve rapid alignment of two pieces of pipe prior to welding.
• Will not back off while weld is being made.
• Simple and easy to use.
Cage Clamps are the cost effective method to quickly align a single size of pipe. There are three versions available; manual, ratchet and hydraulic. These are available in two styles, either “Tack” or “No Tack”. The tack type has straight cross bars and is removed from the pipe before final welding. The more popular no tack model has arched cross bars to permit a 90% circumferential weld without removing the clamp.
Full details can be found in “Documents” section
