Description

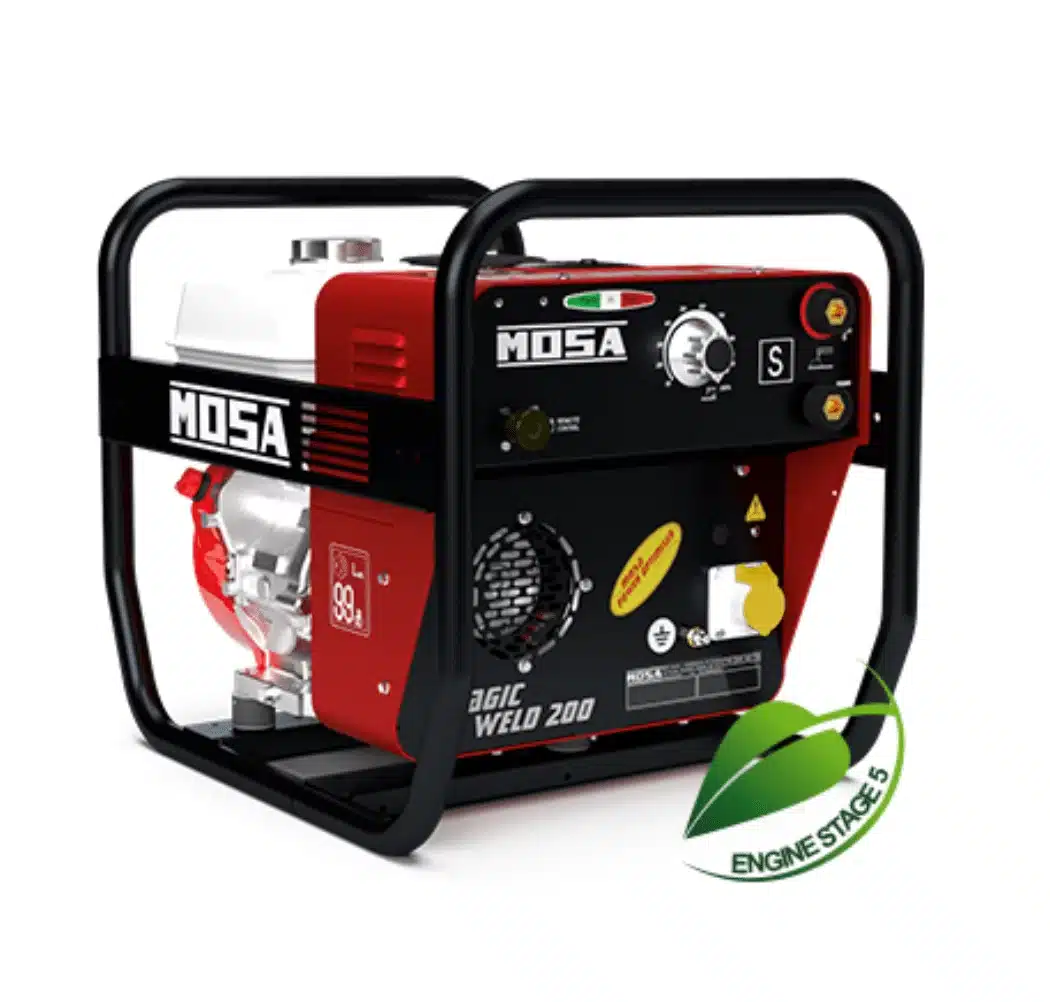

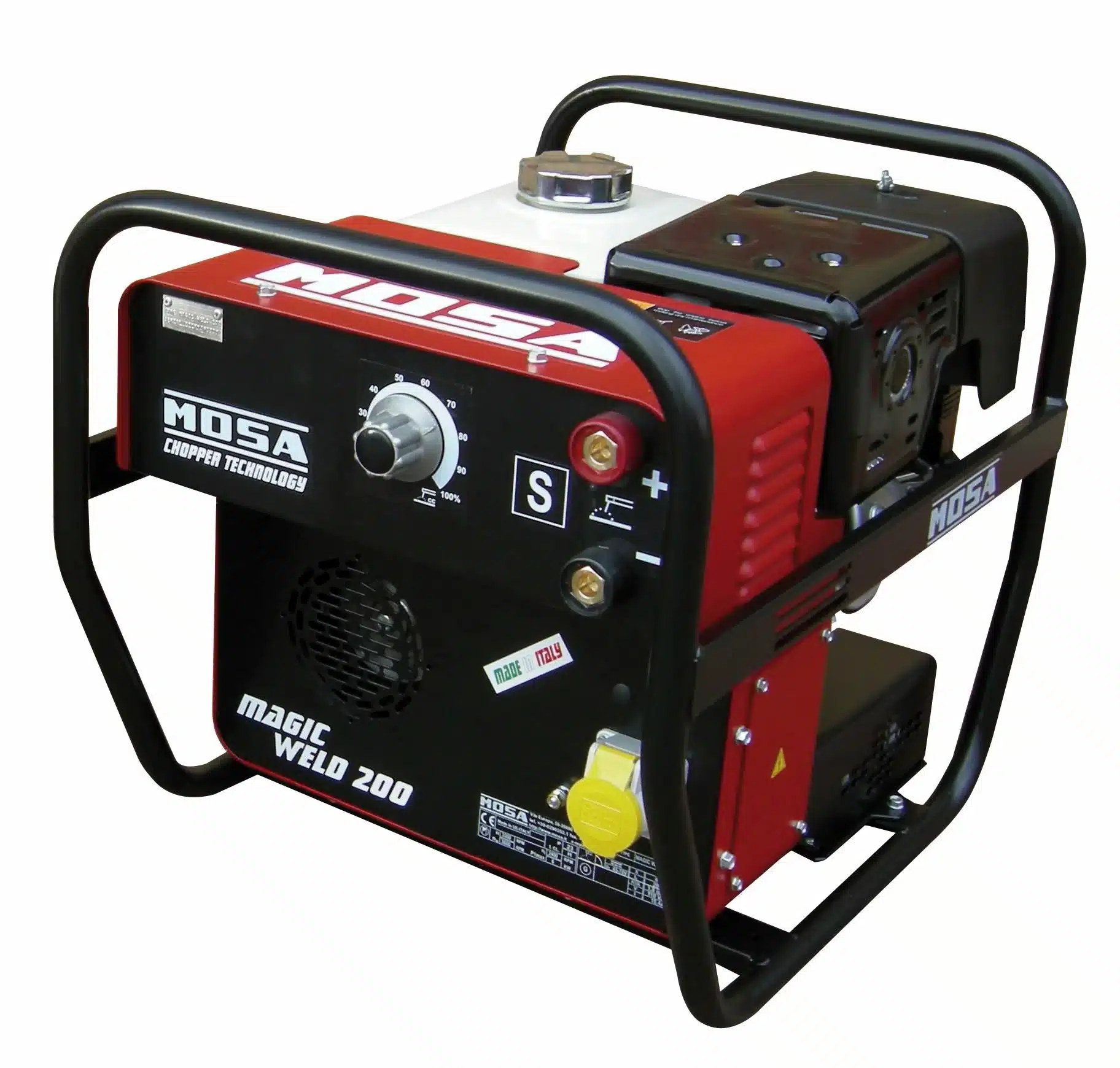

Mosa MagicWeld 200 Amp Engine Driven Petrol Welder Generator 200A (2 1kW-110V) Recoil
Key Features
- Arc welding source in D.C. welding
- Welds any type of electrode, including cellulosic
- High frequency control of welding current and voltage
- Single-phase, 50 Hz aux current, inverter generated – 110V
- Honda engine
- Engine shut-down (oil alert)
- MOSA Power optimiser (patent pending)
- Auto idle
- Protective frame
- Portable
- Meets EC directives
Technical Data
| Parameter | Value |
|---|---|
| Current range | 20A – 200A (continuous) |
| Duty cycle | 200A – 60% |
| Open circuit voltage | 70V |
| Single-phase power (Continuous) | 2.1 kVA (2.1 kW) / 110V/18.2A |
| Insulation class | H |
| Model | Honda GX 270 |
| Output | 6.3 kW (8.5 HP) |
| Cylinders / Displacement | 1 / 270cm3 |
| Speed | 3600 rpm |
| Fuel consumption (welding 60%) | 1.5 I/h |
| Tank capacity | 5.3 litres |
| Running time (welding 60%) | 3.5 hours |
| IP protection degree | IP 23 |
| Dimensions LxWxH (mm) | 630 x 490 x 540 |
| Dry weight | 61 Kg |
| Acoustic power LwA | 99 dB(A) (74 dB(A) @ 7m) |
