Description

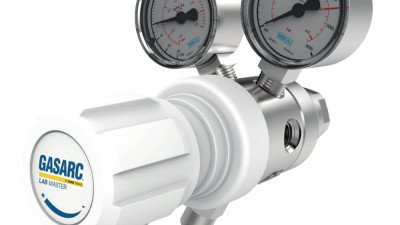

LAB MASTER LGT500 Series Oxygen Regulator
5.0 Purity Two Stage Nickel Plated Brass
Barstock Diaphragm Cylinder Regulator
Lab Master LGT500 series two stage diaphragm cylinder regulators are designed for primary pressure gas control of non-corrosive or toxic, high purity gases up to grade 5.0 purity (99.999%), on applications where constant delivery pressure is required as cylinder pressure decreases.
|
★FEATURES |
|
Six port configuration |
|
Encapsulated seat design |
|
Low wetted surface area |
|
Full range of inlet and outlet fittings |
|
Side entry |
|
MATERIALS |
|
|
Body |
Nickel Plated Brass Barstock |
|
Bonnet |
High Strength Alloy |
|
Diaphragm |
316L Stainless Steel |
|
Seal |
PTFE |
|
Seat |
Polyamide (Nylon®) |
|
Filter |
10 Micron 316L Stainless Steel |
|
SPECIFICATION |
|
|
Maximum Inlet Pressure |
60 bar (870 PSI) / 300 bar (4350 PSI)* |
|
Delivery Pressure Range |
1.5 bar (22 PSI) / 3.5 bar (50 PSI) / 6 bar (90 PSI) / 10 bar (150 PSI) |
|
Gauges |
50mm (2”) Diameter |
|
Ports |
1/4” NPT Female |
|
Temperature Range |
-20o C to +60o C (-4o F to +140o F) |
|
Flow Coefficient (Cv) |
0.079 |
|
Weight |
1.7 kg (3.8 lb)** |
