Kemper MaxiFil Portable Welding Fume Extraction Unit 1100 m³/h 1.5 kW 3x400V W3 Approved - 2 Metre Arm, Flexible Exhaust Arm

65 650 100 Kemper In Stock Fast Dispatch
Price per unit
£3,831.56 ex VAT
£4,597.87 inc VAT
Save %
Was £ ex VAT

  • Portable welding smoke extraction unit with 1100 m³/h capacity
  • 1.5 kW motor, 3 x 400 V / 50 Hz, 70 dB(A) noise level
  • Safe change filter with 42 m² surface, >99.5% efficiency, E12 class
  • 360-degree operating radius with rigid and flexible arm options
  • W3-Approved, suitable for all materials including high-alloy steel
Required
Required
or
Secure Payment Methods:

Shopping for Kemper products? While we cannot accept returns for ordering mistakes, we can definitely prevent them. If you are not sure, Contact Us for personalised recommendations and ordering assistance.

Extraction Unit For Welding Smoke With High Capacity And Safe Filter Change

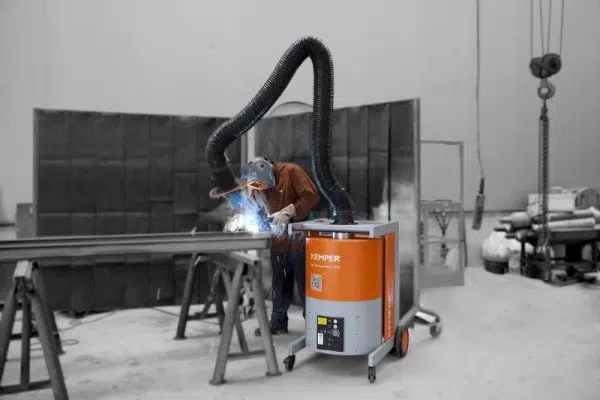

The KEMPER Maxifil Extraction Unit is designed for the extraction of welding smoke, featuring high capacity and a safe filter change mechanism. With its high mobility and 360-degree operating radius, it is ideal for regular use in environments with medium amounts of smoke and dust.

Features and Benefits

  • High Filter Capacity: Ensures efficient operation even in environments with medium levels of smoke and dust.
  • Contamination-Free Filter Change: Provides a safer working environment and easy maintenance.
  • High Mobility: 360-degree operating radius for flexible use.
  • Flow-Optimised Exhaust Hood: Requires less adjustment during use, saving time and effort.
  • Filter Monitoring: Increases safety by ensuring the filter is functioning properly.
  • Economic Operation: Long-lasting high capacity filters reduce the need for frequent replacements.
  • Safe Operation: Rotation field control enhances operational safety.
  • Variety of Accessories and Variants: Customizable to specific needs, including different arm lengths and voltages.
  • W3-Approved: Meets high standards for welding fume extraction.
  • Optional Lighting and Automatic Start-Stop: Enhances convenience and efficiency of operation.

Typical Applications

  • Suitable for all materials, including high-alloy steel
  • Medium levels of smoke and dust
  • Regular use

Available Variants

  • Arm lengths: Various options
  • Voltages: Other voltages available

Extraction capacity 1100 m³/h
Filter stages 2
Filter method Storage Filter
Filter surface 42 m²
Type of filter Safe Change Filter
Filter material Non-woven polyester
Filter efficiency > 99.5 %
Filter class E12
Additional filters Pre-filter (aluminium)
Motor power 1.5 kW
Power supply 3 x 400 V / 50 Hz
Rated current 3.1 A
Control voltage 24 V, DC
Noise level 70 dB(A)
Dimensions (w x t x h) 803 x 892 x 1109 mm
Weight 129 kg
Quantity of extraction arms 1
Exhaust arm type Rigid and flexible options
Diameter extraction arm 150 mm
Length of exhaust arm 2 to 4m
IFA-Certification W3-Approved
Fan type Radial fan
Rotating exhaust hood Standard
Automatic start-stop Optional
Workplace lighting incl. on/off switch at the hood Optional
Brand Kemper
Extraction Flow Rate 1100 m³/h
Noise Level 70 dB
Filter Efficiency > 99.5 %
Exhaust Arm Length 2 Metre Arm ·
Exhaust Arm Type Flexible Exhaust Arm ·
SKU Exhaust Arm Length Exhaust Arm Type Stock Status
65 650 103 2 metre arm rigid metal tube exhaust arm In Stock £4,127.63 ex VAT £4,953.16 inc VAT
65 650 104 3 metre arm rigid metal tube exhaust arm In Stock £4,279.77 ex VAT £5,135.72 inc VAT
65 650 102 4 metre arm flexible exhaust arm In Stock £3,965.61 ex VAT £4,758.73 inc VAT
65 650 101 3 metre arm flexible exhaust arm In Stock £3,898.17 ex VAT £4,677.80 inc VAT
65 650 105 4 metre arm rigid metal tube exhaust arm In Stock £4,426.97 ex VAT £5,312.36 inc VAT
65 650 100 2 metre arm flexible exhaust arm In Stock £3,831.56 ex VAT £4,597.87 inc VAT

Technical Datasheet

Download PDF
