Description

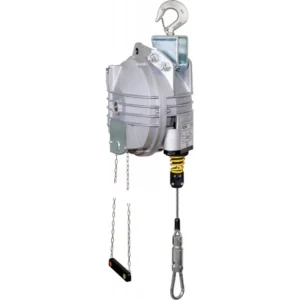

Tecna Balancer 35-45Kg 2000mm Stroke
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel cable.
- Adjustable capacity by means of a worm screw.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Taper drum rotating on ball bearings.
- Cable guide in antifriction material.
- Rotary upper hook with ball bearing.
- Inert spring drum assembly.
- Polyamides thimble.
Technical Data
ITEM | 9361 | 9362 | 9363 | 9364 | 9365 | 9366 | 9367 | 9368 | 9369 |
---|---|---|---|---|---|---|---|---|---|
Capacity (kg) | 10-15 | 15-20 | 20-25 | 25-30 | 30-35 | 35-45 | 45-55 | 55-65 | 65-75 |
Stroke (mm) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
Net weight (kg) | 9.88 | 10.17 | 10.45 | 11.29 | 11.29 | 12.18 | 12.18 | 13.02 | 13.82 |
Gross weight (kg) | 11.8 | 12.1 | 12.4 | 13.3 | 13.3 | 14.1 | 14.1 | 15 | 15.8 |
Package dimensions (mm) | 455x270x280 | 455x270x280 | 455x270x280 | 455x270x280 | 455x270x280 | 455x270x280 | 455x270x280 | 455x270x280 | 455x270x280 |
